Visio Corner Built In Gas Fire
Brand: Rais
Rais. The art of fire.
The RAIS Visio 70 F Corner Facing Built-In Gas Fire is the smallest of the Rais corner models, with glass on the right side. Create a cosy and inviting gathering spot by incorporating this sleek glass fireplace design into a corner, or use it to create a modern focal point in your home, for instance as a room divider. An effective and eco-friendly heating source that’s easy to integrate into the home in a number of different and unique ways. This gas fireplace is easily controlled by remote control or your phone/tablet for incredibly authentic and natural-looking flames wherever you choose to enjoy them.
This model comes with a black or stainless steel frame.
Connects to natural gas or LPG.
Visio 70 Corner Fire Right Hand
Visio 70 Corner Fire Left Hand
Visio 90 Corner Fire Left Hand
Visio 100 Corner Fire Right Hand
Visio 100 Corner Fire Left Hand
Visio 160 Corner Fire Left Hand

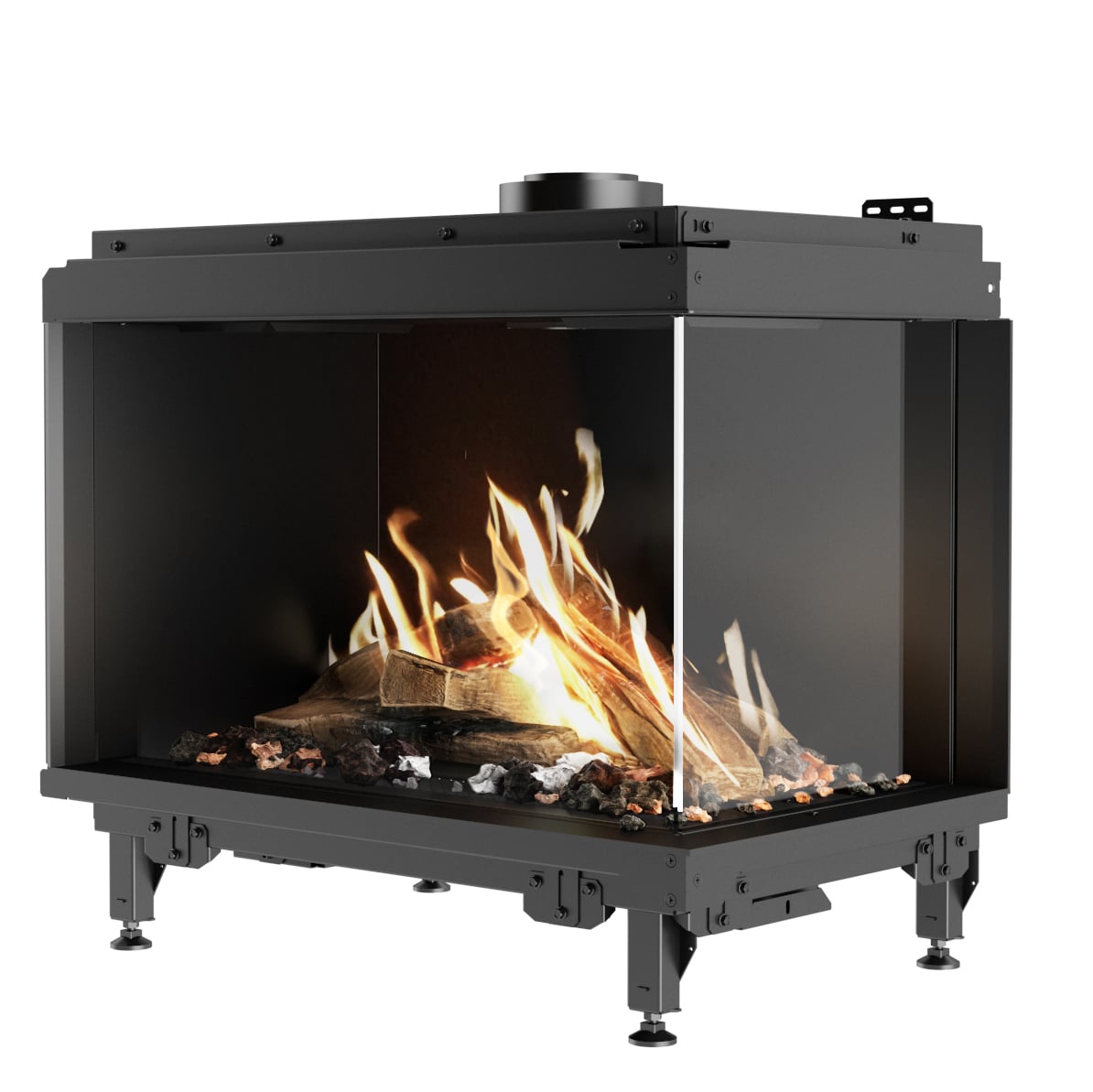

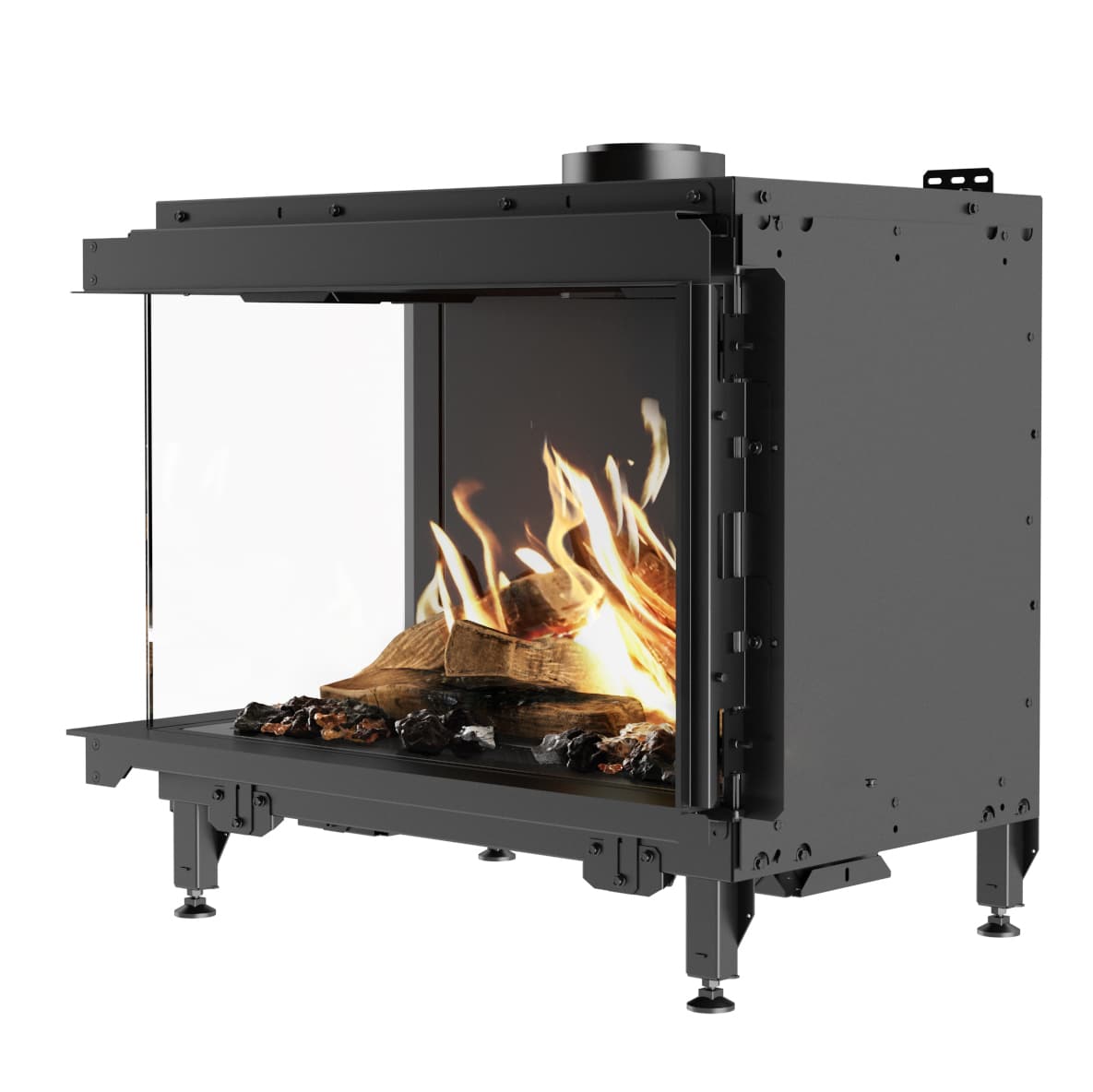

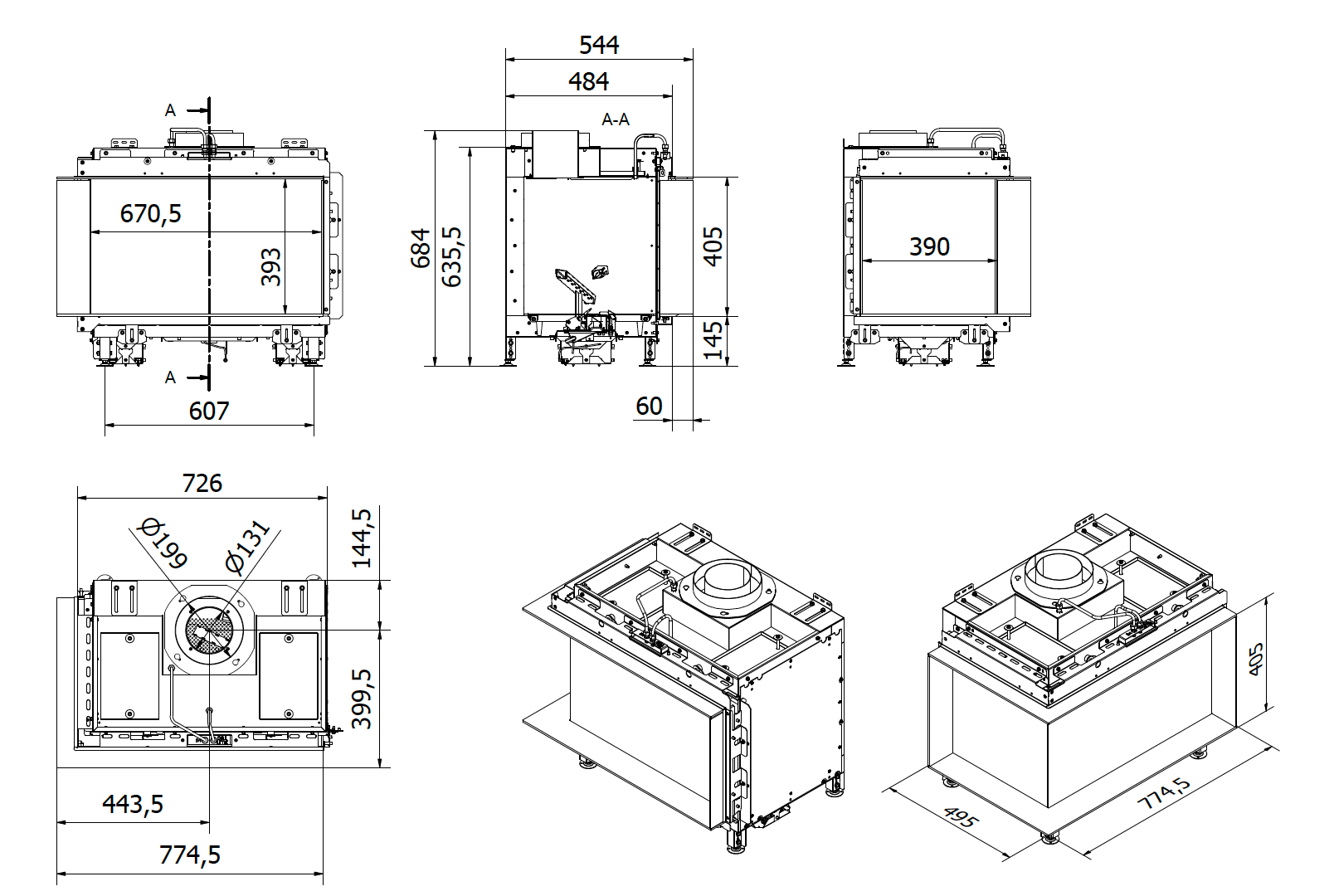

TECHNICAL DATA 70 CORNER FIRE
|
External dimensions (W-D-H) in mm:
|
826 x 538 x 684
|
|
Installation dimensions (W-D-H):
|
769,5 x 489 x 405
|
|
Outer frame dimensions in mm:
|
769,5 x 489 x 405
|
|
Flue outlet (diameter):
|
Ø130 / Ø200
|
|
Outer diameter gas connection:
|
Ø8
|
|
Weight in kg
|
105
|
|
Output
|
|
|
NATURGAS
|
1,9 – 8,8
|
|
PROPANGAS
|
1,8 – 8
|
|
Efficiency in %
|
91
|

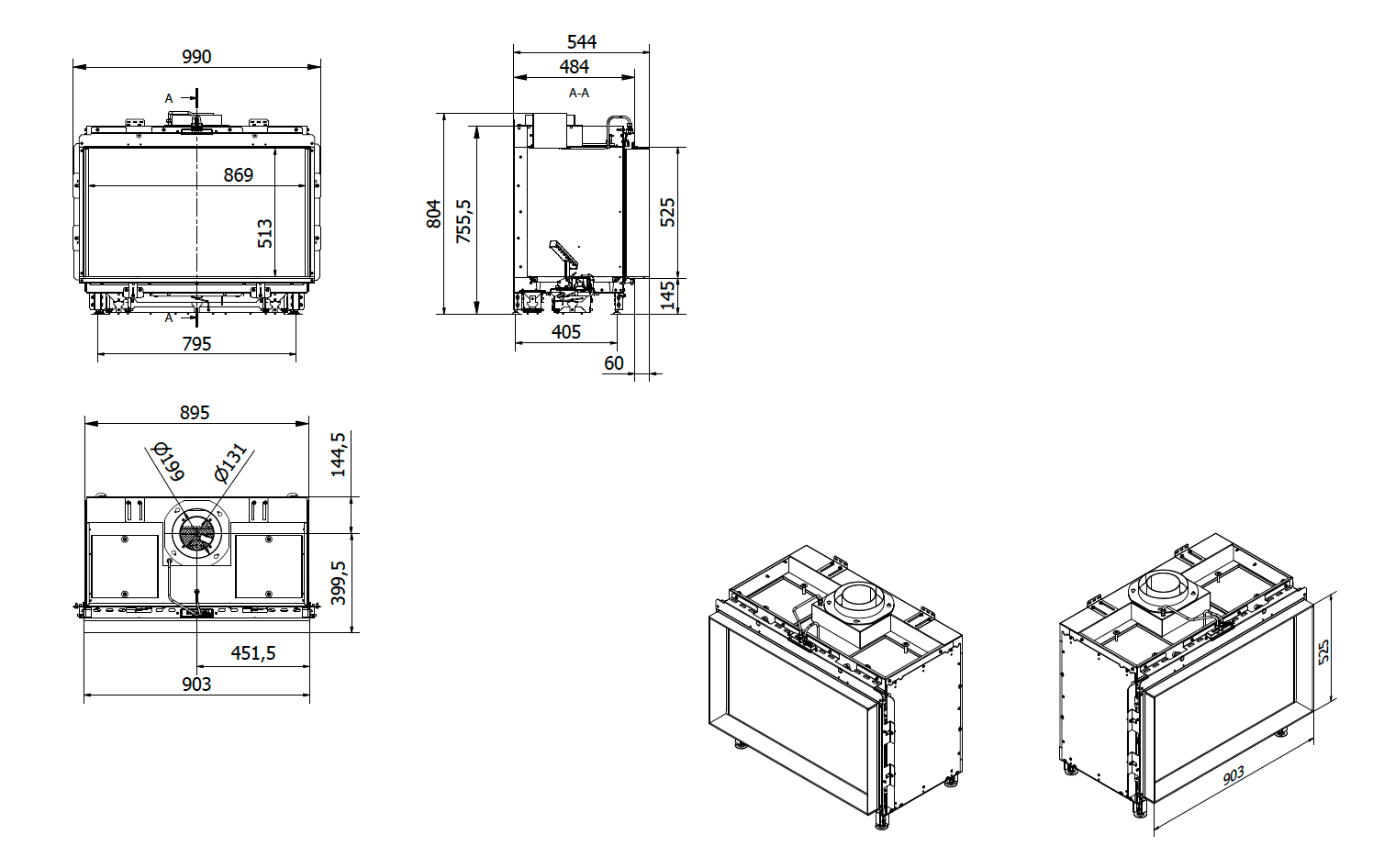

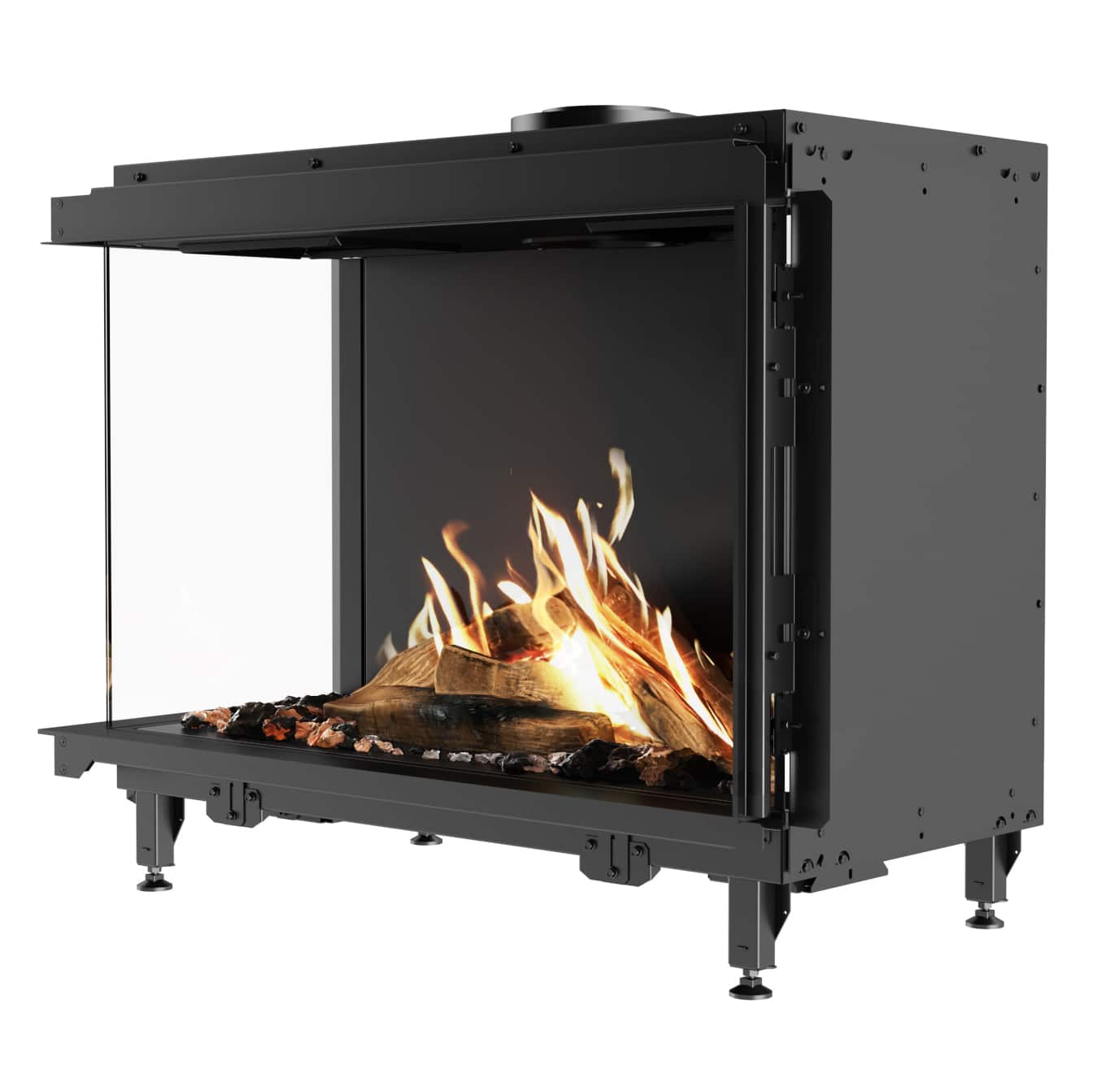

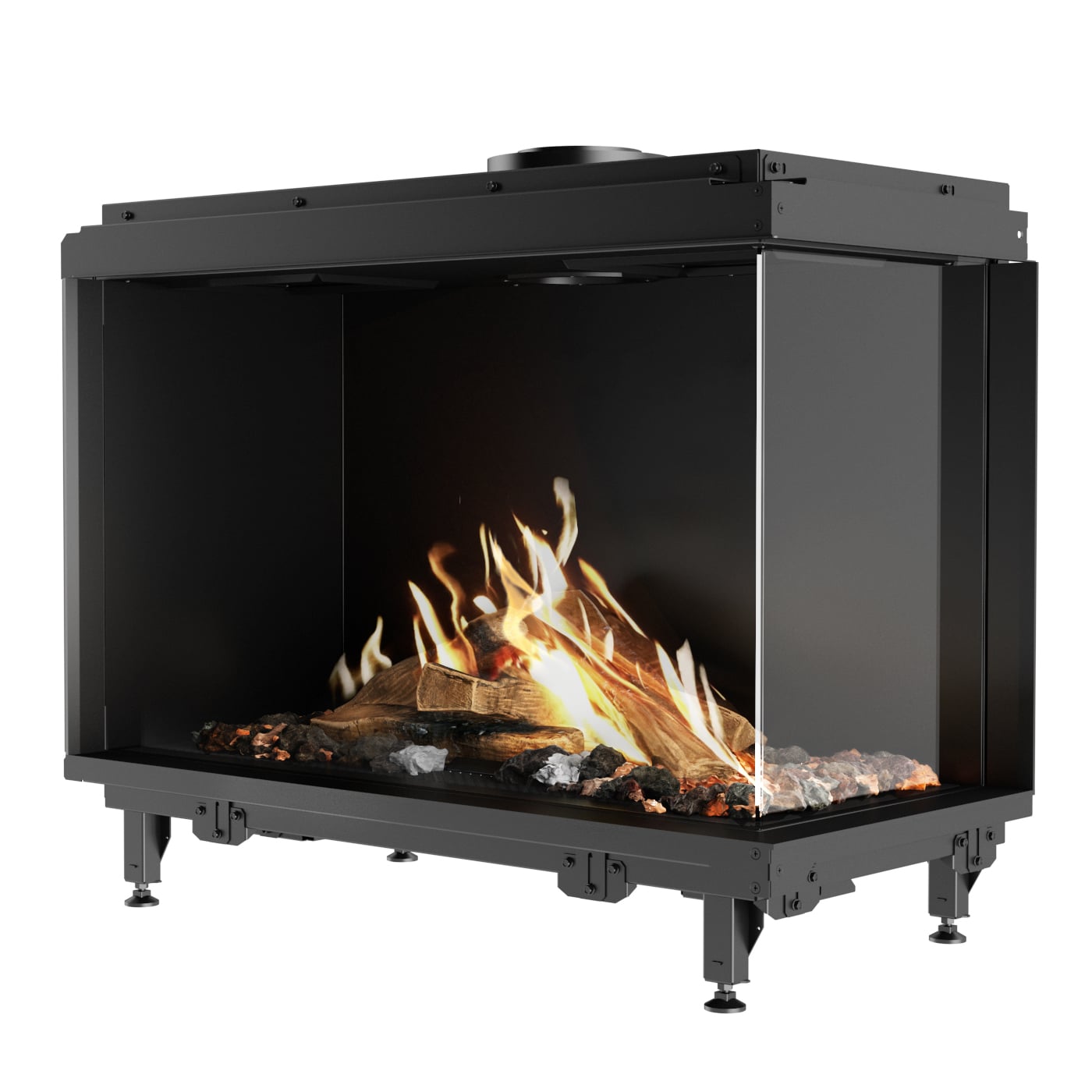

TECHNICAL DATA 90 CORNER FIRE
|
External dimensions (W-D-H) in mm:
|
990 x 538 x 804
|
|
Installation dimensions (W-D-H):
|
903 x 525
|
|
Outer frame dimensions in mm:
|
903 x 525
|
|
Flue outlet (diameter):
|
Ø130 / Ø200
|
|
Outer diameter gas connection:
|
Ø8
|
|
Weight in kg
|
145
|
|
Output
|
|
|
NATURGAS
|
2,5 – 11
|
|
PROPANGAS
|
2,4 – 10,8
|
|
Efficiency in %
|
91,5
|

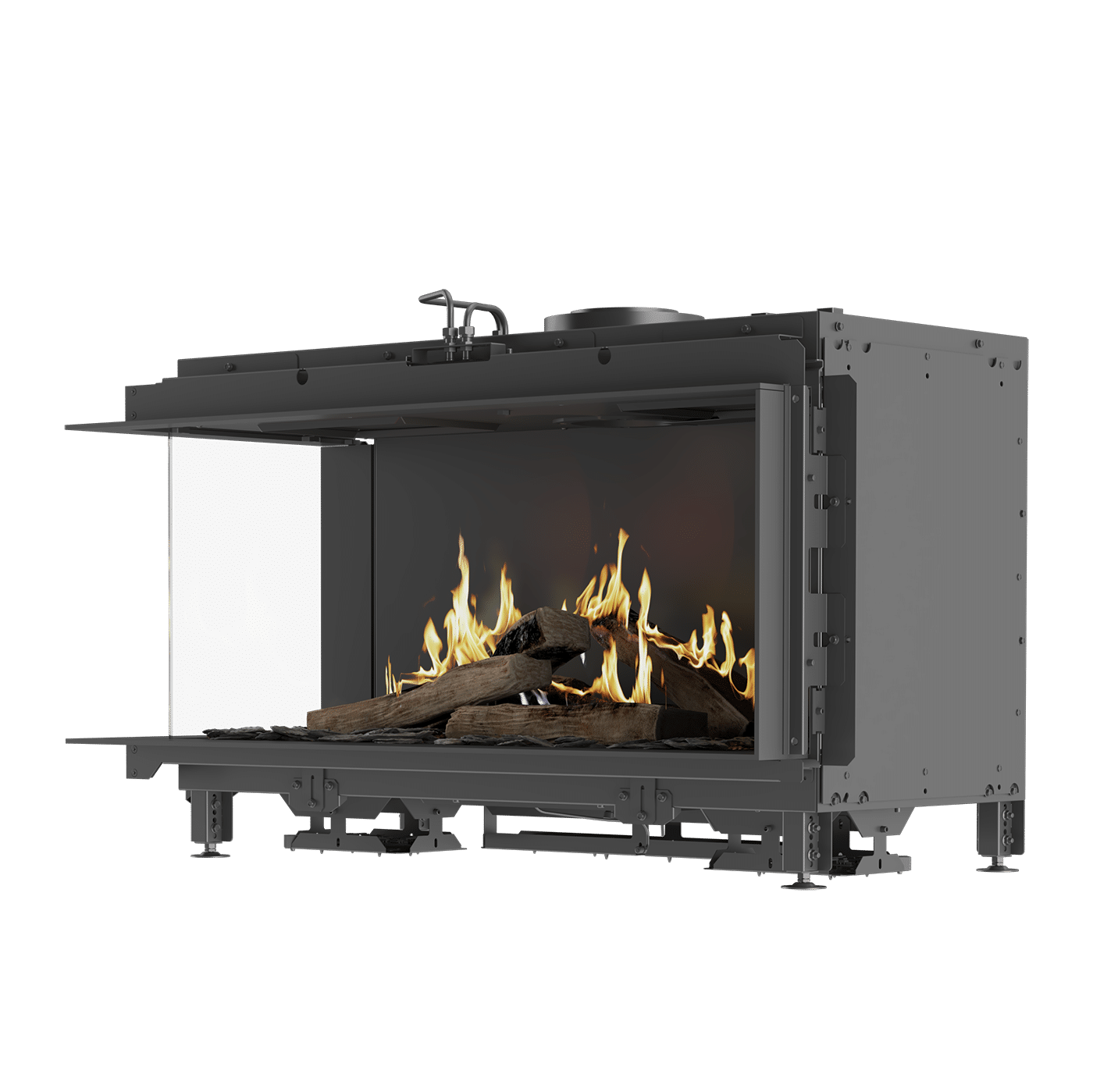

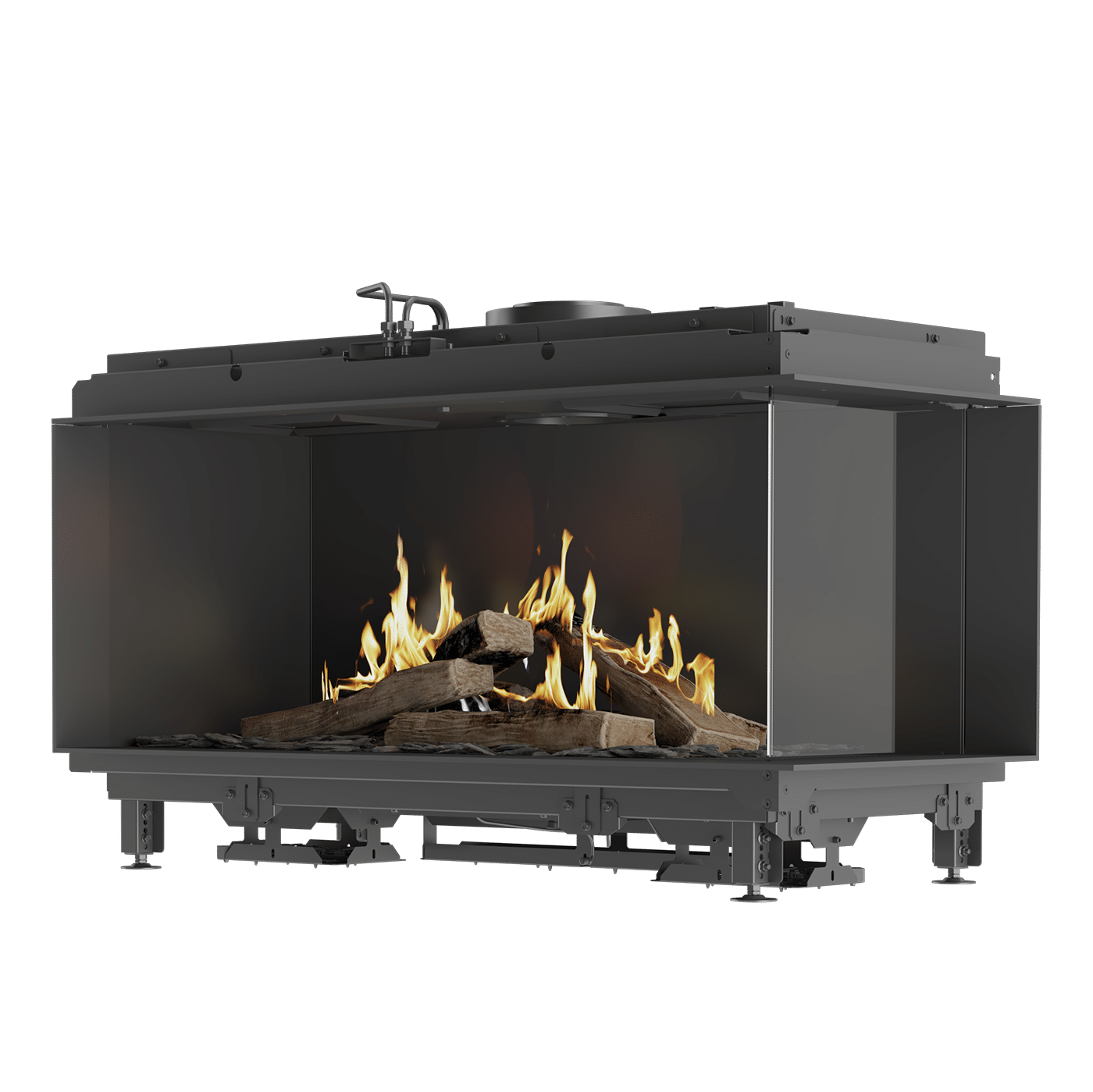

TECHNICAL DATA 100 CORNER FIRE
|
External dimensions (W-D-H) in mm:
|
1090 x 484 x 635
|
|
Installation dimensions (W-D-H):
|
1078,5 x 489 x 405
|
|
Outer frame dimensions in mm:
|
1078,5 x 489 x 405
|
|
Flue outlet (diameter):
|
Ø130 / Ø200
|
|
Output
|
|
|
NATURGAS
|
8,2
|
|
PROPANGAS
|
9,4 / 7,9
|
|
Efficiency in %
|
90,5
|

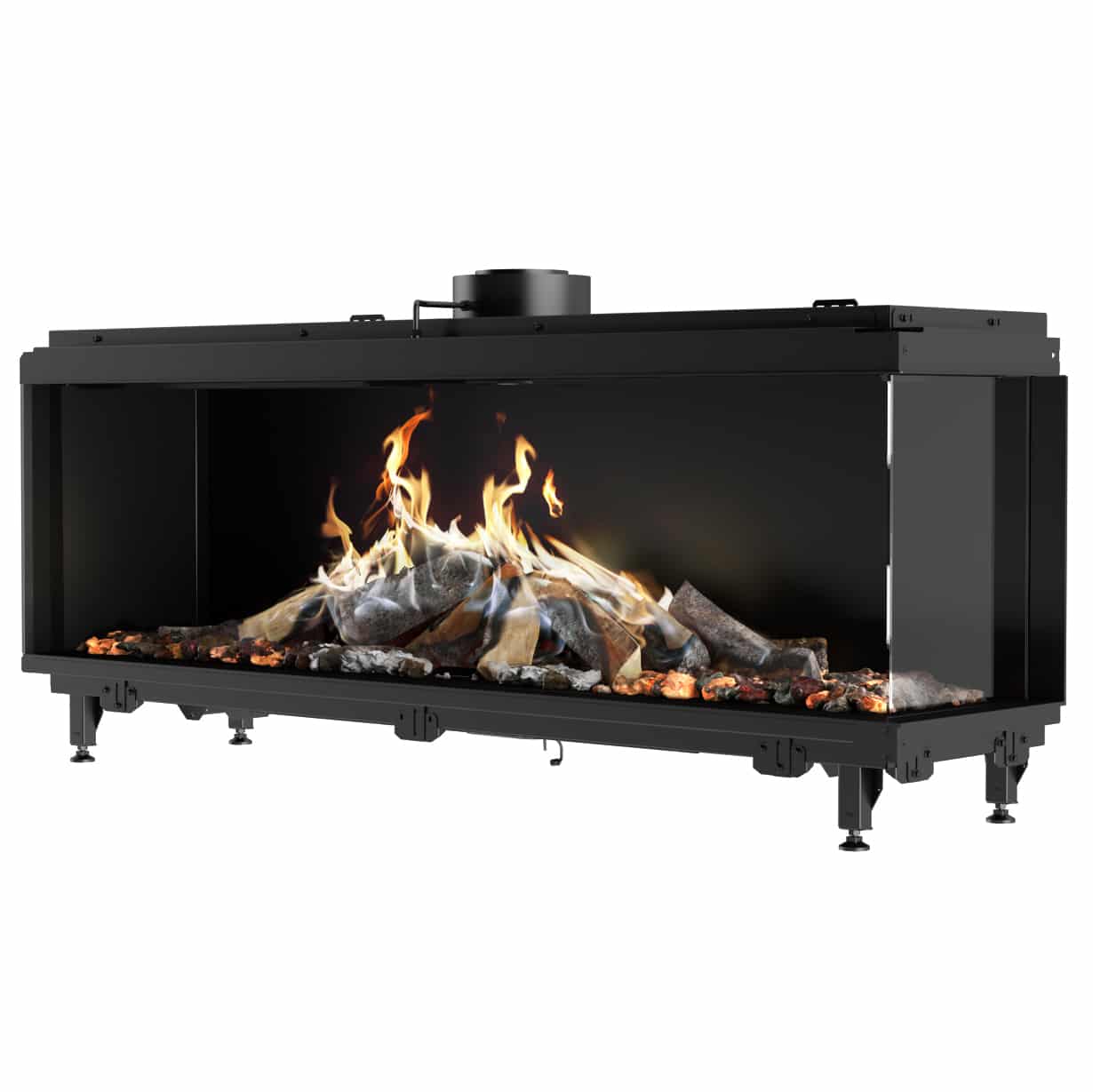

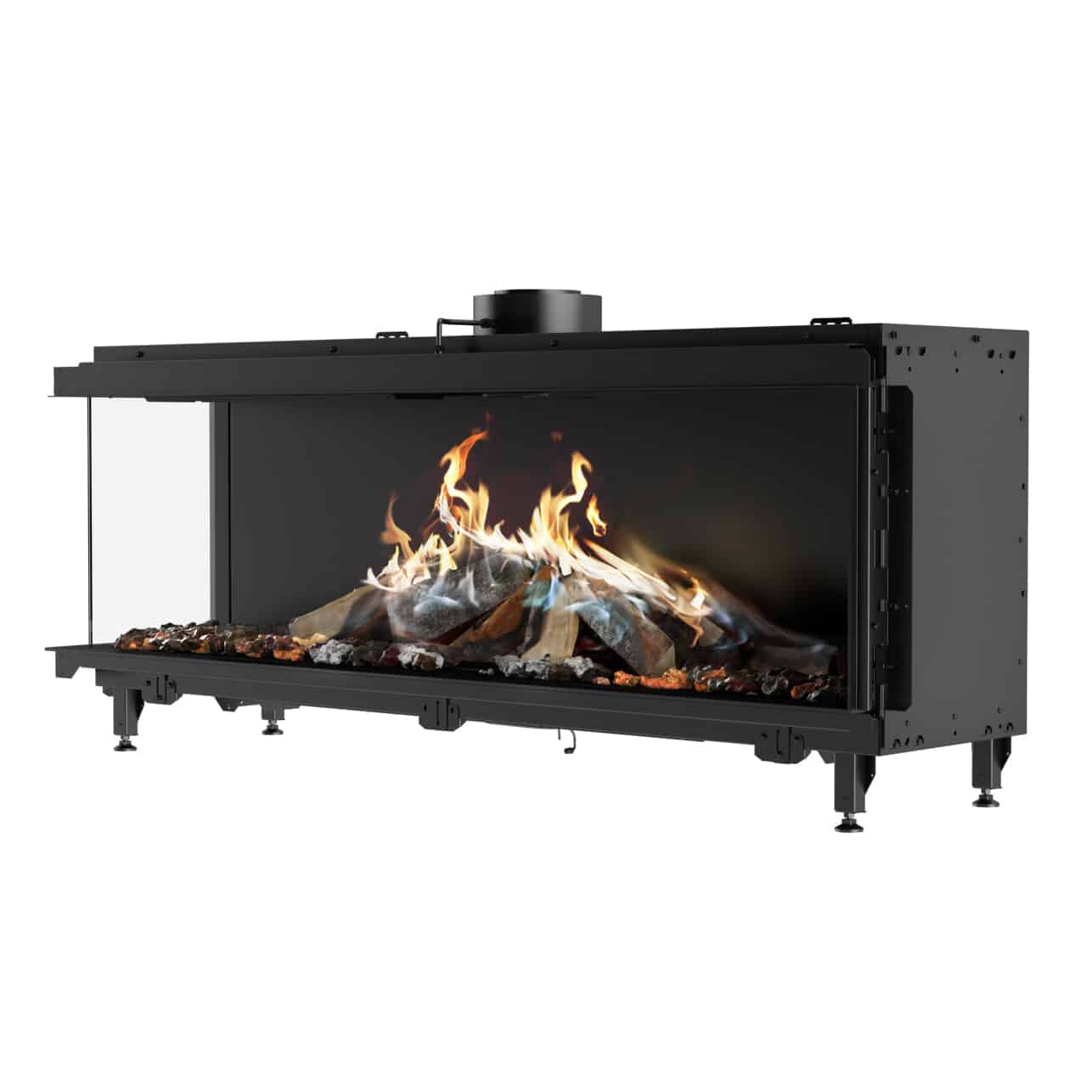

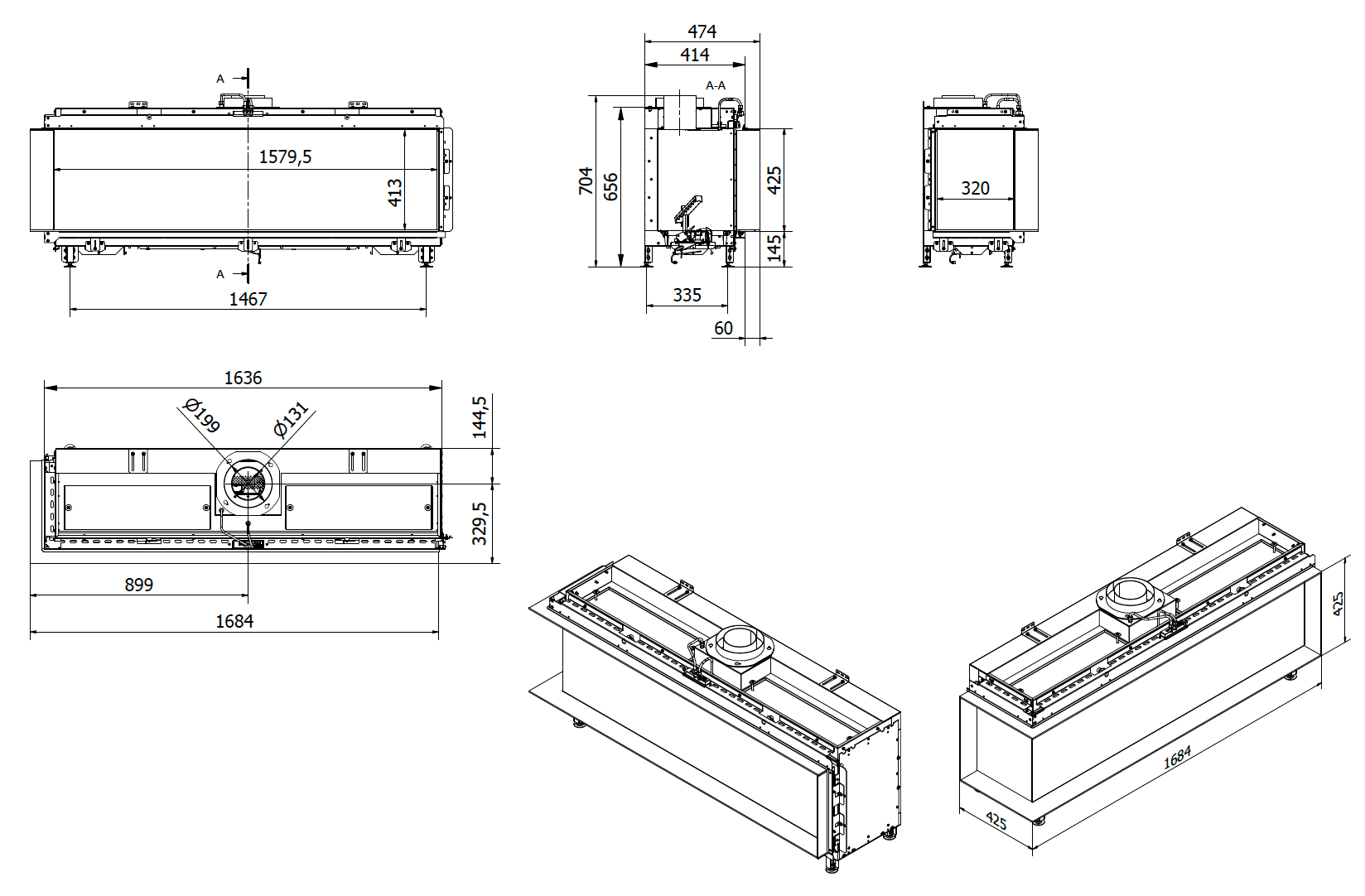

TECHNICAL DATA VISIO 160 CORNER
|
External dimensions (W-D-H) in mm:
|
1736 x 468 x 704
|
|
Installation dimensions (W-D-H):
|
1678,5 x 419 x 425
|
|
Outer frame dimensions in mm:
|
1678,5 x 419 x 425
|
|
Flue outlet (diameter):
|
Ø130 / Ø200
|
|
Outer diameter gas connection:
|
Ø10
|
|
Weight in kg
|
165
|
|
Output
|
|
|
NATURGAS
|
3 – 17,2
|
|
PROPANGAS
|
2,7 – 16,5
|
|
Efficiency in %
|
92
|
- Visio 70 Right Corner Manuals, Drawings & Documentation
- Visio 70 Left Corner Manuals, Drawings & Documentation
- Visio 90 Right Corner Manuals, Drawings & Documentation
- Visio 90 Left Corner Manuals, Drawings & Documentation
- Visio 100 Right Corner Manuals, Drawings & Documentation
- Visio 100 Left Corner Manuals, Drawings & Documentation
- Visio 160 Right Corner Manuals, Drawings & Documentation
- Visio 160 Left Corner Manuals, Drawings & Documentation
