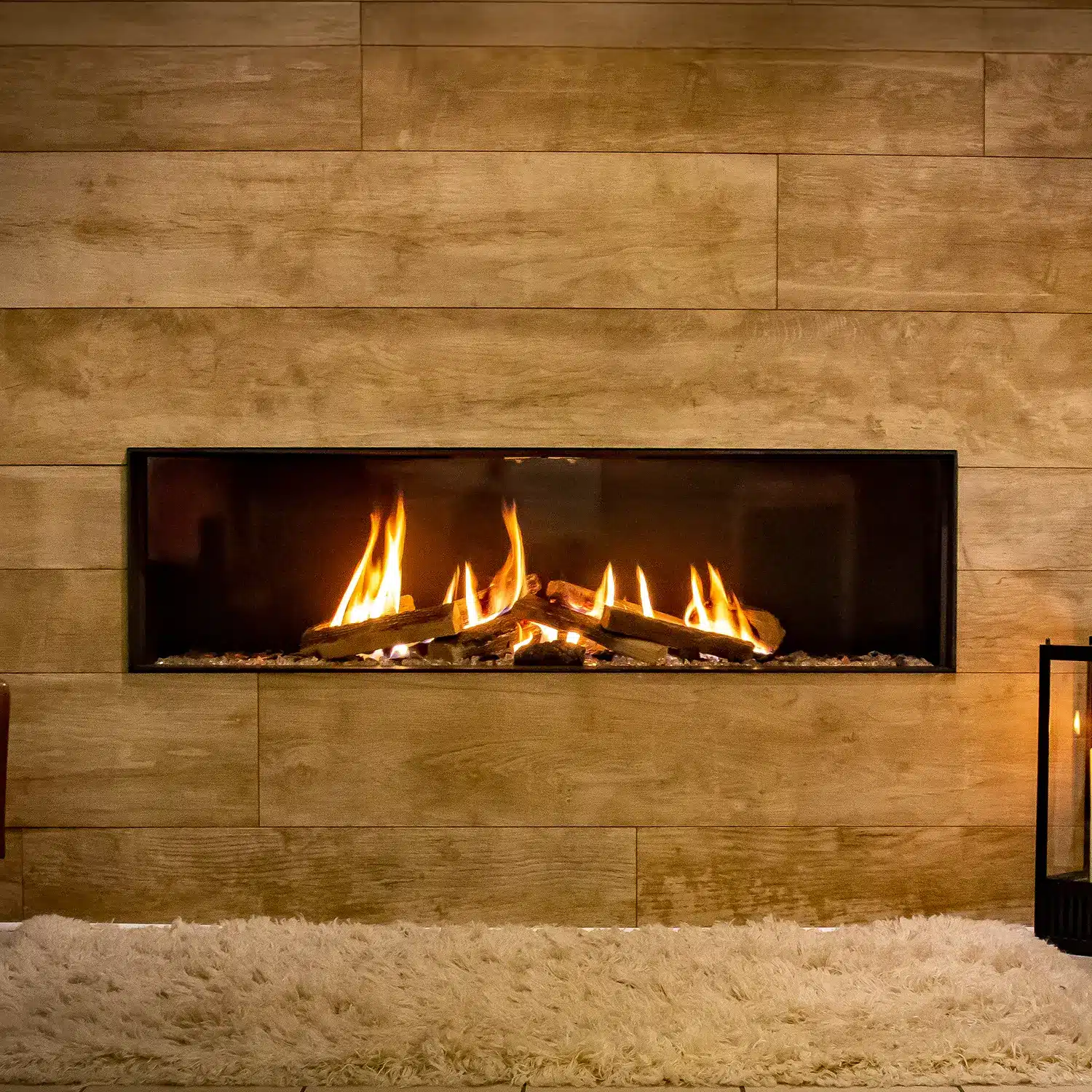

Visio Front Facing Built In Gas Fire
Brand: Rais

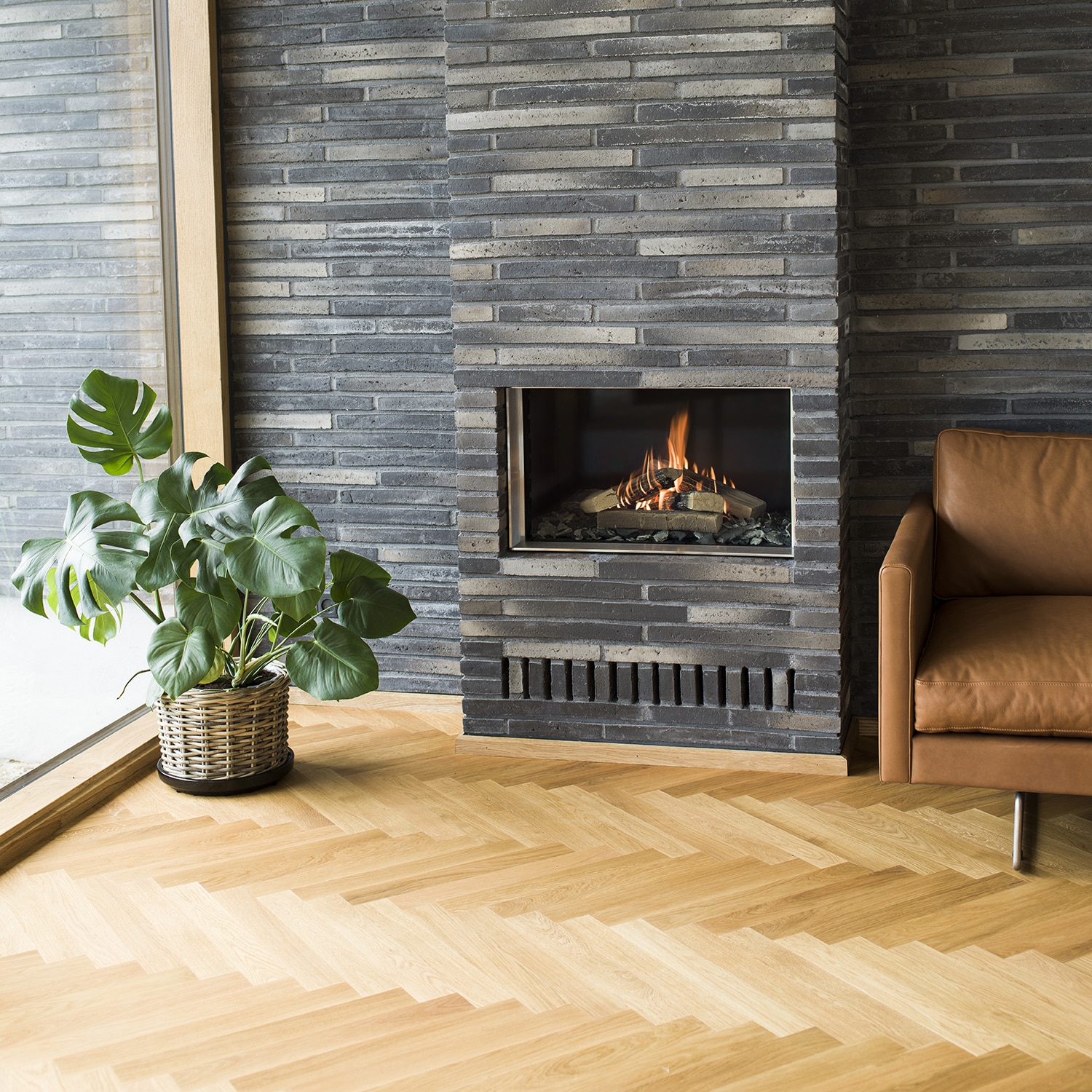

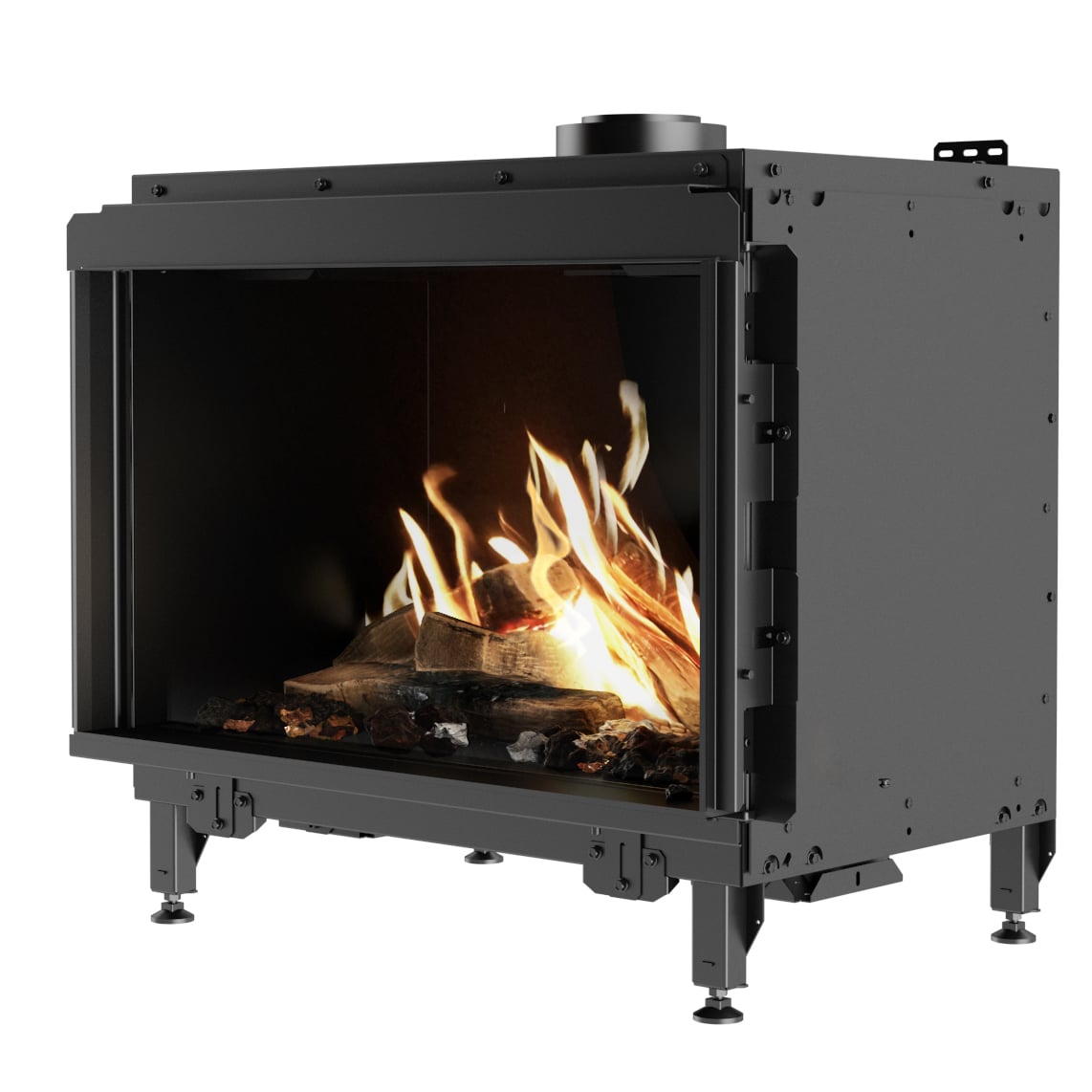

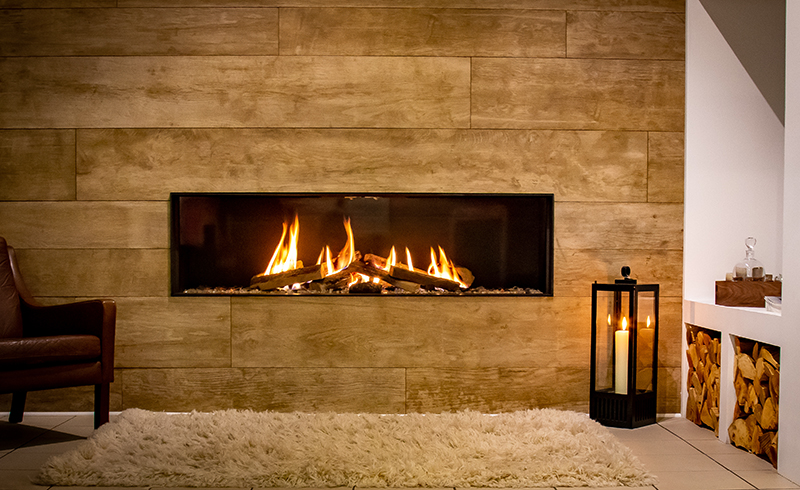

The RAIS Visio 70 F is the smallest of the Visio gas front-facing, built-in models. The glass of this gas fireplace is 70 cm wide where a simple and discreet frame gives you a better view of the flame. These front-facing gas fire models come with non-reflective glass, so that you almost do not notice the glass is there at all, leaving you to focus on the gorgeous flames. The fire is also remote-controlled for easing of lighting, and in minutes you will have a cosy warmth in your home.
This model comes with a black or stainless steel frame.
Connects to natural gas, or LPG.
Visio 70 Front

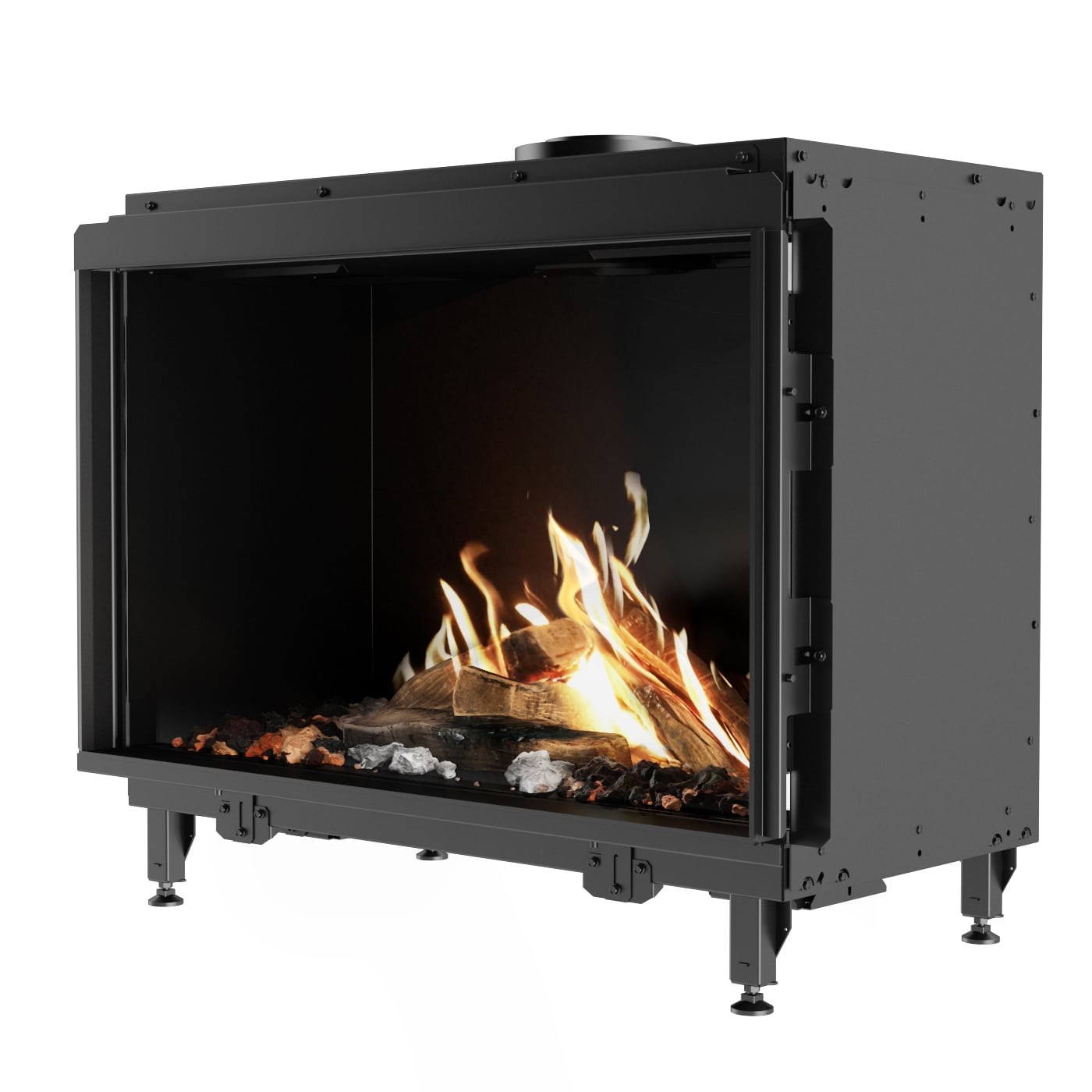

Visio 90 Front

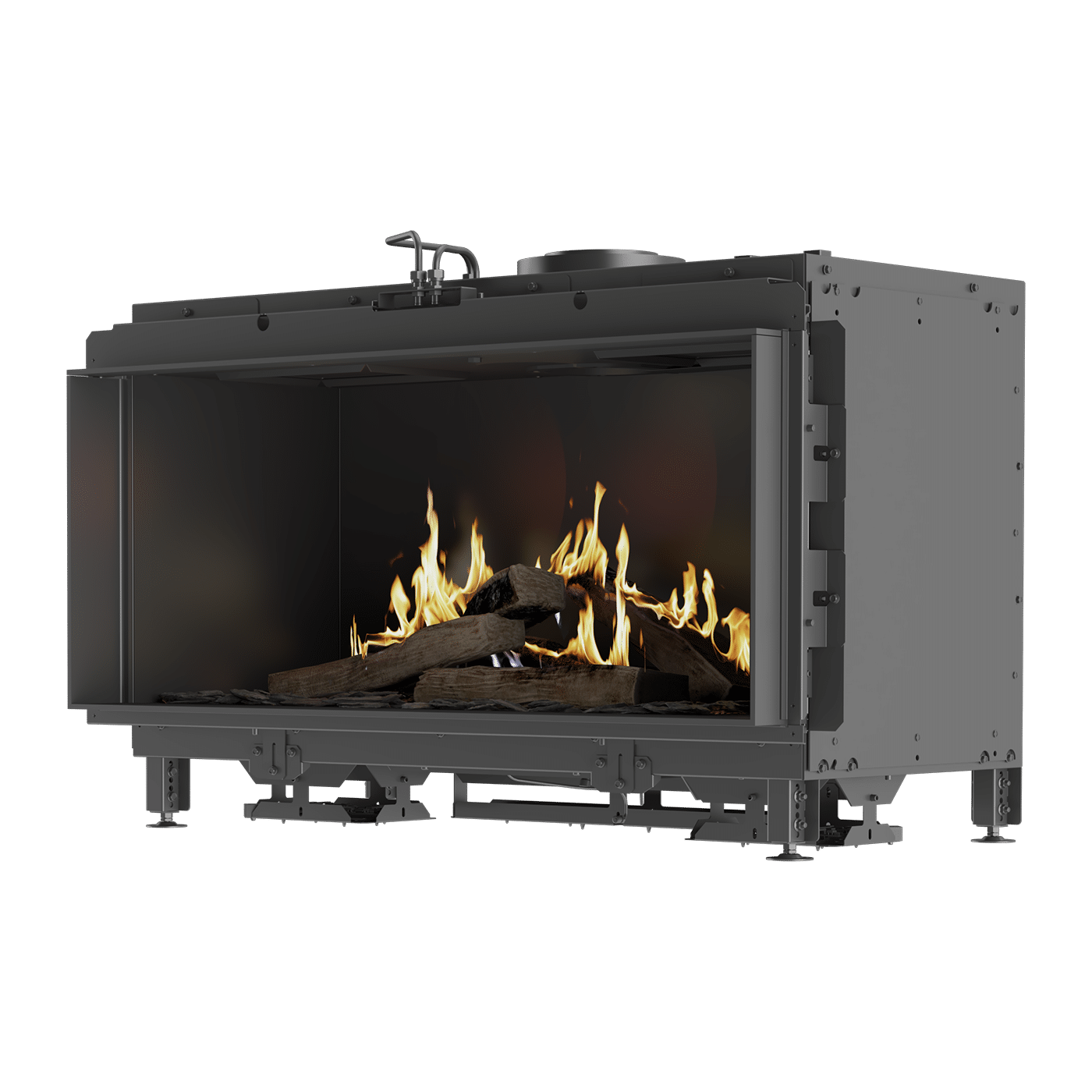

Visio 100 Front

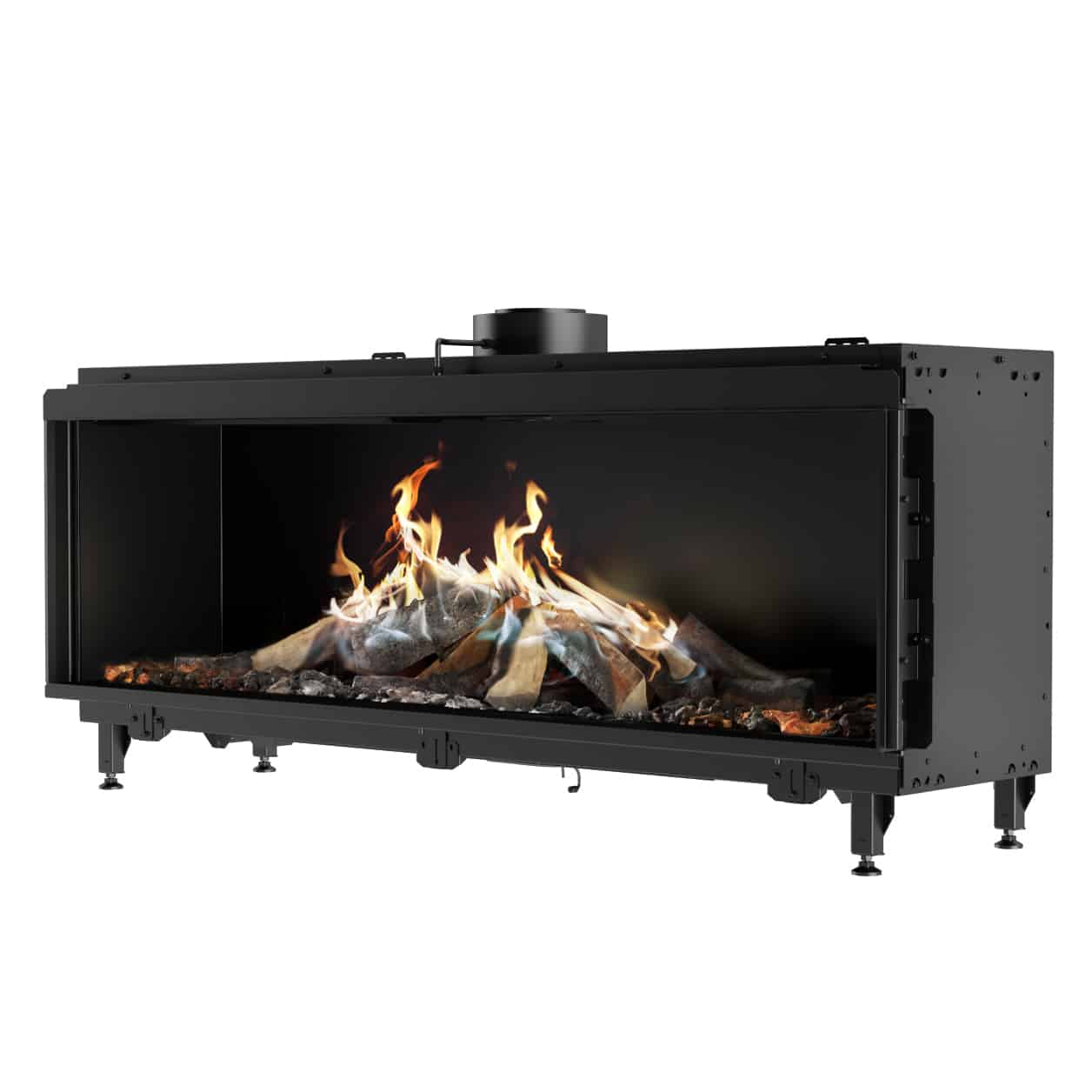

Visio 160 Front

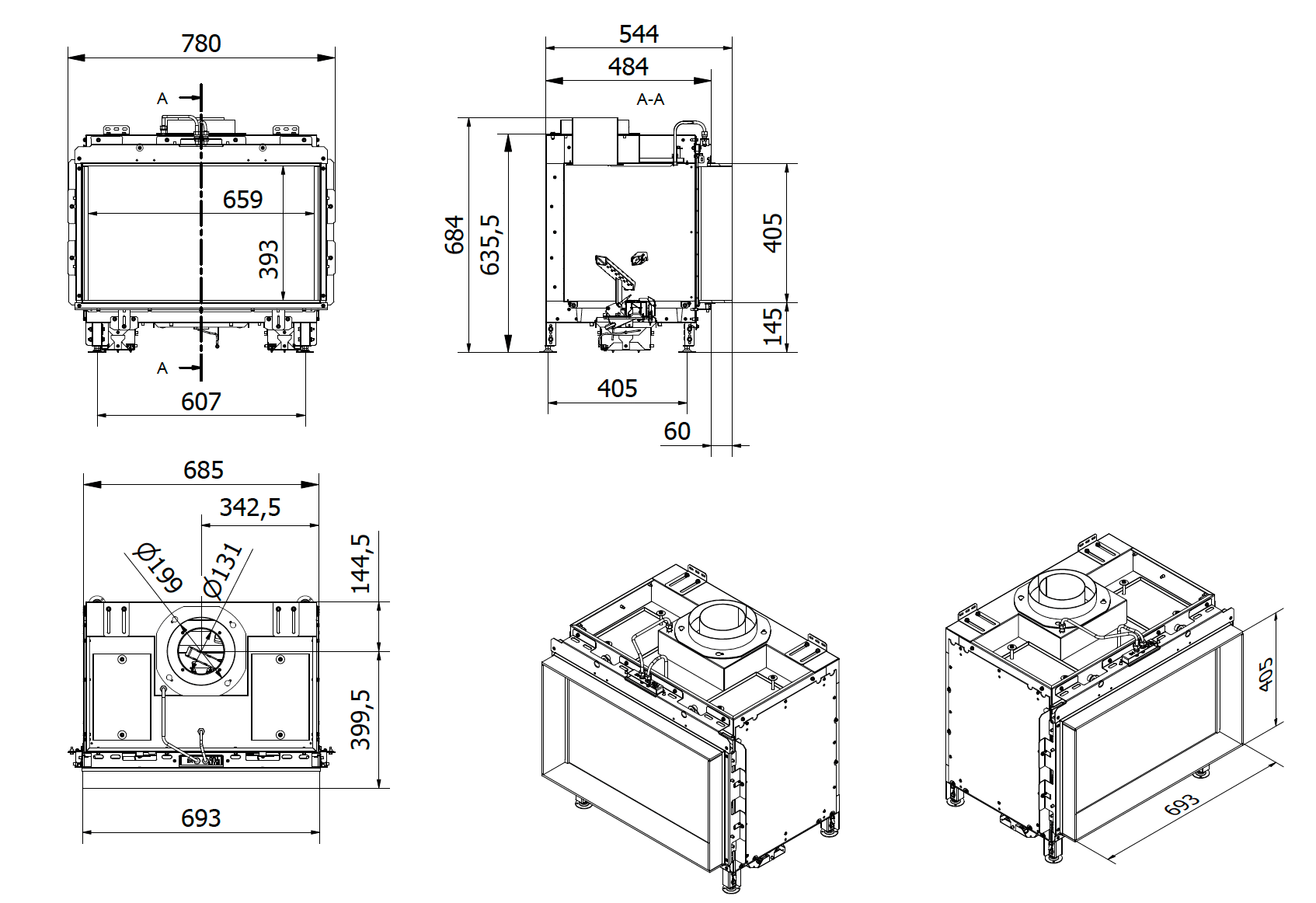

TECHNICAL DATA VISIO 70 FRONT
|
External dimensions (W-D-H) in mm:
|
780 x 538 x 684
|
|
Installation dimensions (W-D-H):
|
693 x – x 405
|
|
Outer frame dimensions in mm:
|
693 x 405
|
|
Flue outlet (diameter):
|
Ø130 / Ø200
|
|
Outer diameter gas connection:
|
Ø8
|
|
Weight in kg
|
110
|
|
Output
|
|
|
NATGAS
|
7,6
|
|
LPG
|
9,4 / 7,9
|
|
Efficiency in %
|
90,5
|

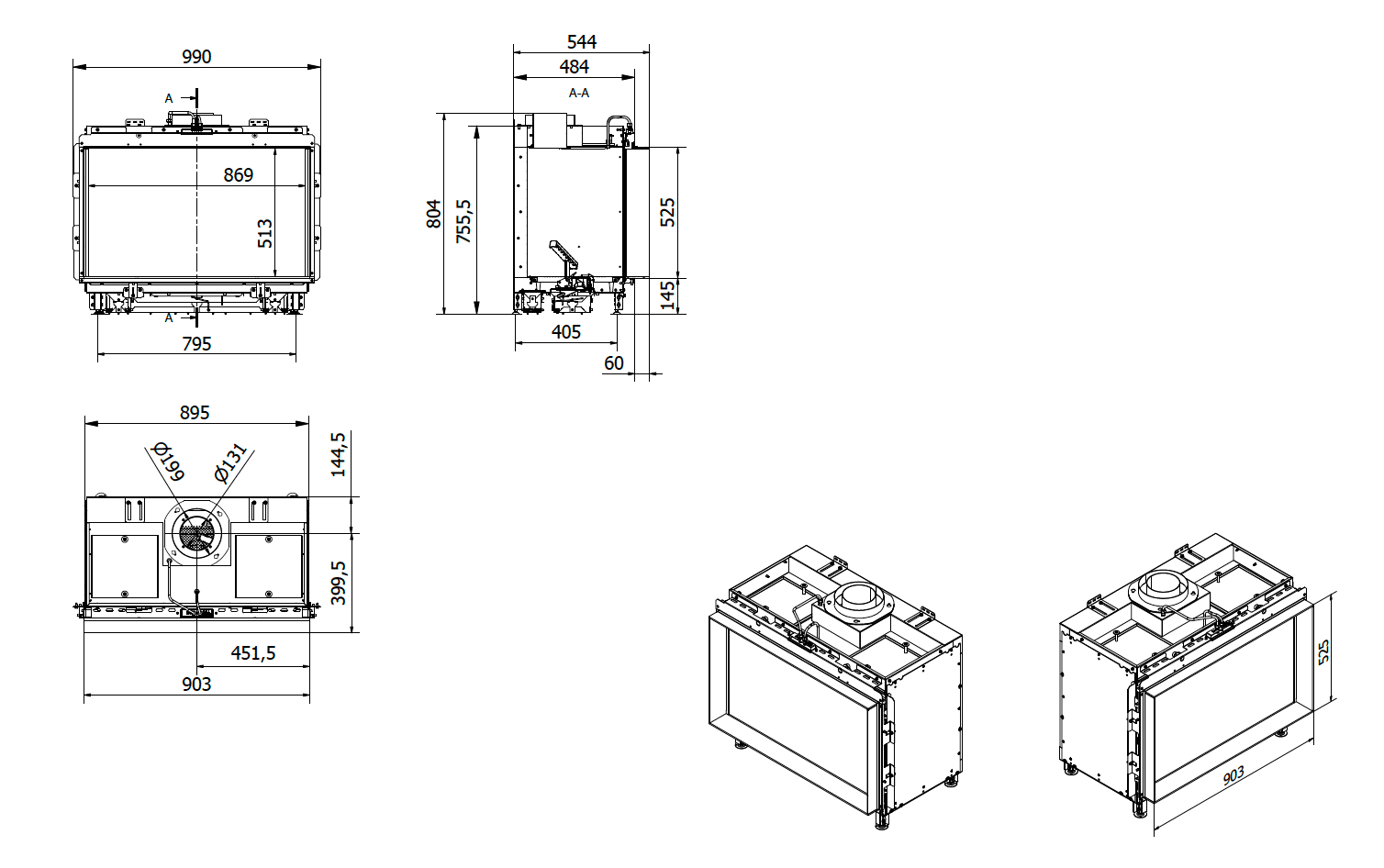

TECHNICAL DATA VISIO 90 FRONT
|
External dimensions (W-D-H) in mm:
|
990 x 538 x 804
|
|
Installation dimensions (W-D-H):
|
903 x 525
|
|
Outer frame dimensions in mm:
|
903 x 525
|
|
Flue outlet (diameter):
|
Ø130 / Ø200
|
|
Outer diameter gas connection:
|
Ø8
|
|
Weight in kg
|
145
|
|
Output
|
|
|
NATURGAS
|
2,5 – 11
|
|
PROPANGAS
|
2,4 – 10,8
|
|
Efficiency in %
|
91,5
|

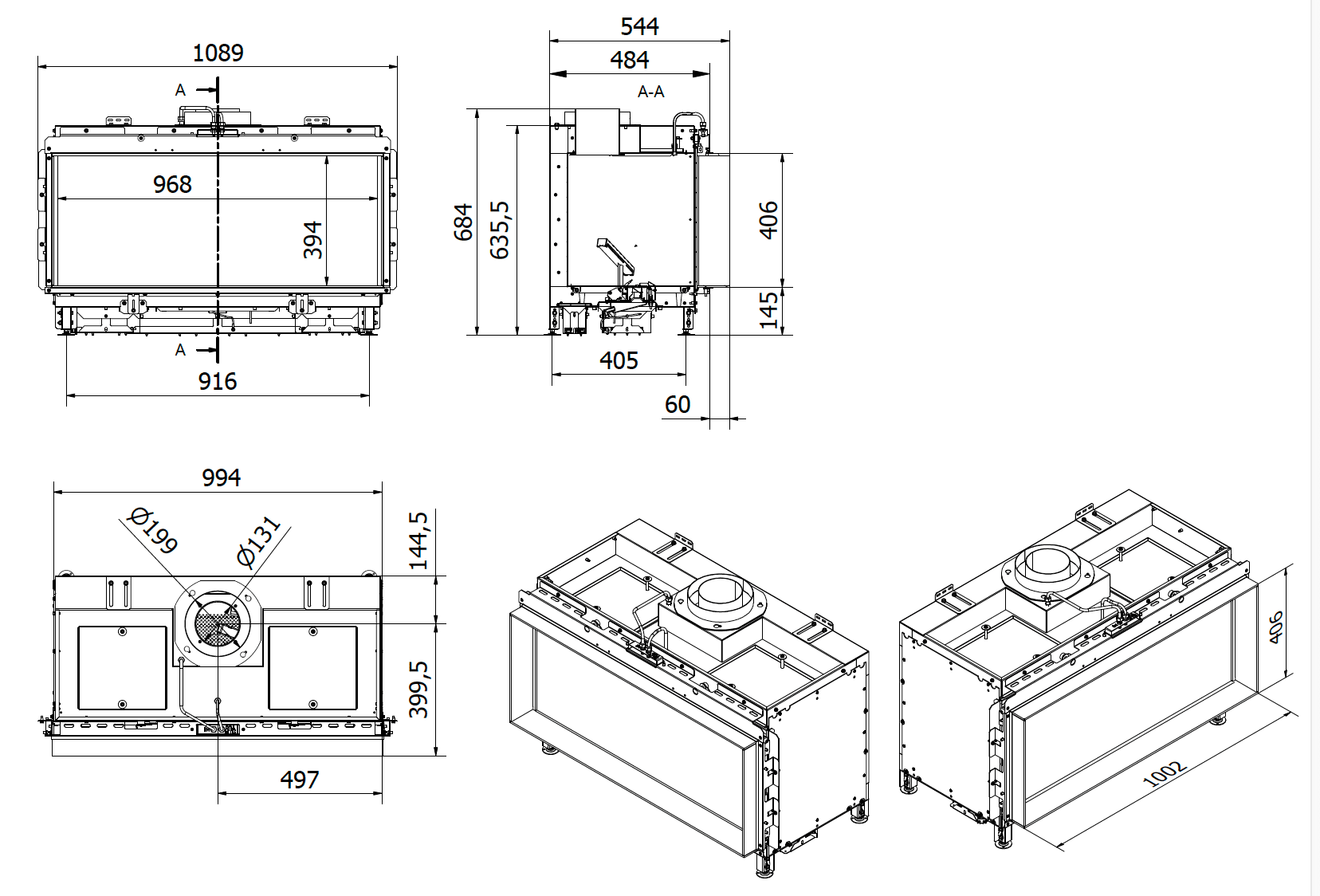

TECHNICAL DATA VISIO 100 FRONT
|
External dimensions (W-D-H) in mm:
|
1089 x 484 x 638
|
|
Installation dimensions (W-D-H):
|
1002 x 425
|
|
Outer frame dimensions in mm:
|
1002 x 425
|
|
Flue outlet (diameter):
|
Ø130 / Ø200
|
|
Output
|
|
|
NATURGAS
|
8,2
|
|
PROPANGAS
|
9,4 / 7,9
|
|
Efficiency in %
|
90,5
|

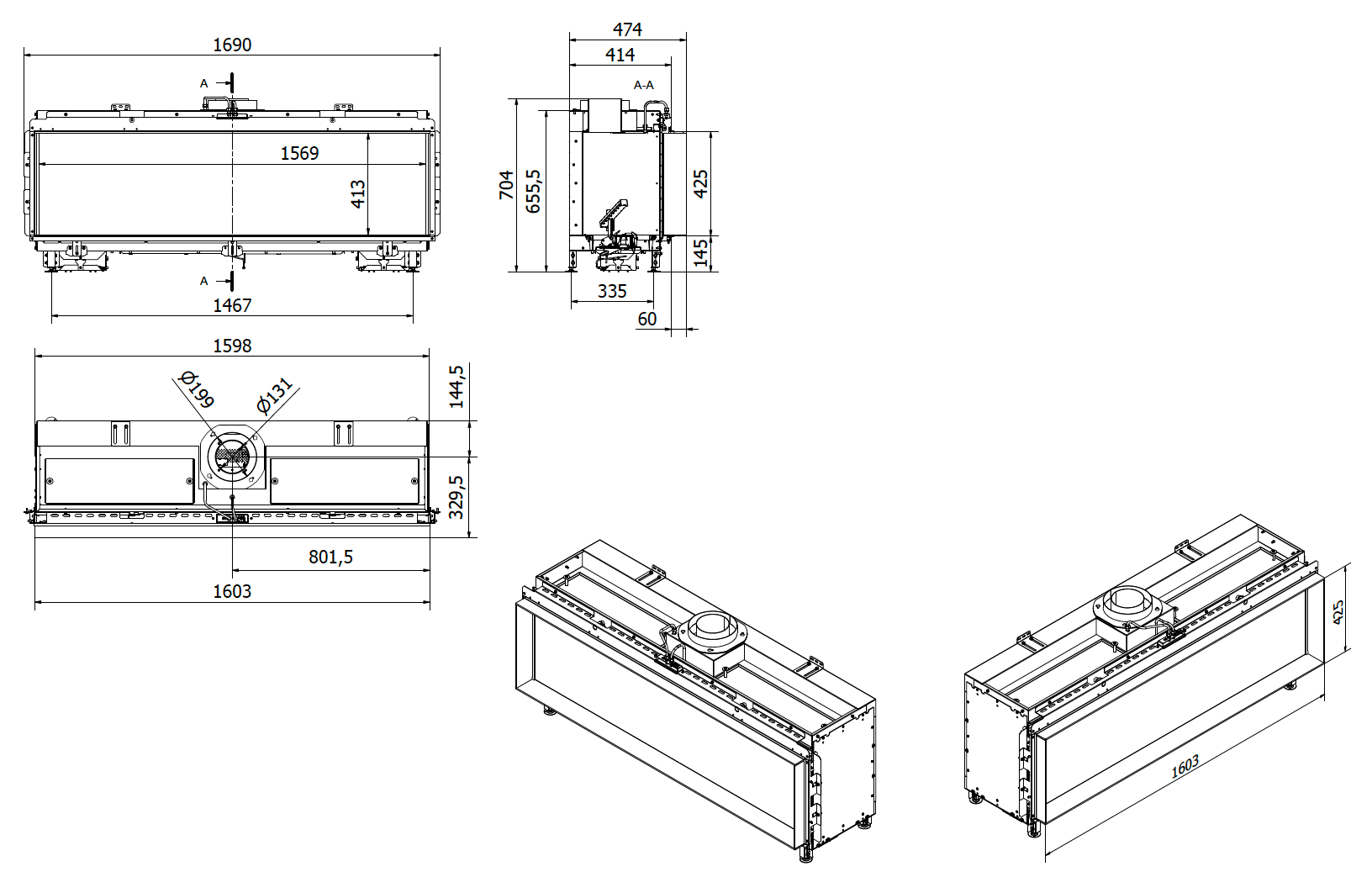

TECHNICAL DATA VISIO 160 FRONT
|
External dimensions (W-D-H) in mm:
|
1690 x 468 x 704
|
|
Installation dimensions (W-D-H):
|
1603 x 425
|
|
Outer frame dimensions in mm:
|
1603 x 425
|
|
Flue outlet (diameter):
|
Ø130 / Ø200
|
|
Outer diameter gas connection:
|
Ø10
|
|
Weight in kg
|
170
|
|
Output
|
|
|
NATURGAS
|
3 – 17,2
|
|
PROPANGAS
|
2,7 – 16,5
|
|
Efficiency in %
|
92
|
