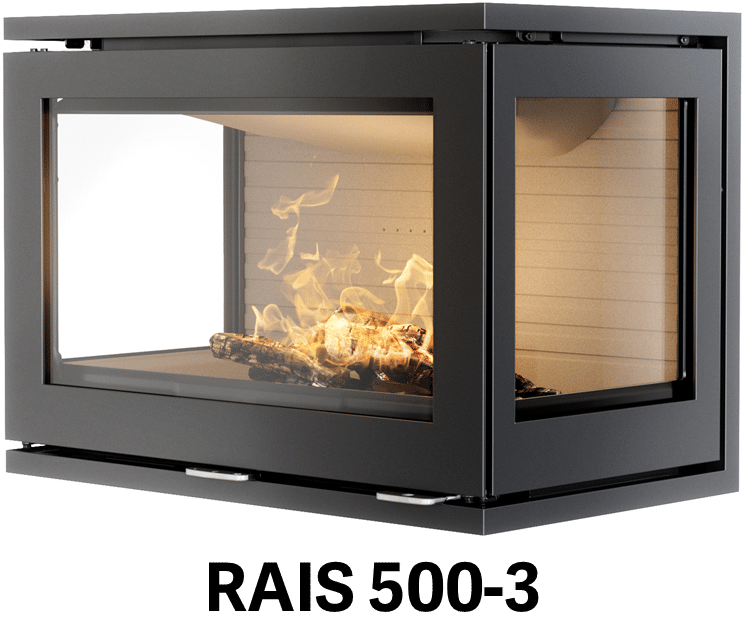

500-3 Insert Wood Burning Three Sided Firebox 5.6 kW
Brand: Rais
Efficiency: 76%
Efficiency Class: A
Output: 5.6 kW
This insert is remarkably pure in style, offering a range of new architectural possibilities when it comes to creating unique individual solutions for the modern home.
With glass on three sides, the fire is brought out into the room and comes to life in a beautiful way.
You can choose between a steel framed door and an all-glass one.
External air connection is either through the base or rear wall.
The RAIS 500 retains clear windows when properly fired.
Make an enquiry about this product
TECHNICAL DATA
|
External dimensions (W-D-H) in mm
|
678 – 427 – 479
|
|
Combustion chamber inner dimensions (W-D-H) in mm
|
545 – 280 – 200
|
|
Installation dimensions (W-D-H) in mm
|
578 – 484 – 350
|
|
Rated output
|
5,6
|
|
Rated Output (kW)
|
5
|
|
Output
|
|
|
Output (min-max) in kWh
|
4 – 8
|
|
Output (min-max)>
|
4 – 8
|
|
Heating (at -20°C) in m2
|
30 – 120
|
|
Efficiency in %
|
76
|
