Fireboxes

RISE N’FALL DOOR
Practical and safe. A rise n’ fall mechanism offers utmost safety and better control of combustion with considerable benefits in terms of efficiency and saving. The glass is protected by a closed steel structure, which prevents smoke from coming out during opening and closing. The door also offers the possibility of hinged opening to make maintenance and cleaning easier.

STEEL STRUCTURE
Solid and durable. The steel structure and the cast iron fire pit ensure that the firebox is solid, robust and long-lasting, features for which Piazzetta products have always been renowned.

WIDE SCREEN FIRE
The flame in full view. The large glass surface, which is heat resistant up to 750∞C, offers a pleasantly relaxing view of the fire. Air flows constantly over the ceramic glass and helps keep it clean.

ON REQUEST

• Cooking Pro kit
• Adjustable legs kit
• Positioning handles kit

Technical data

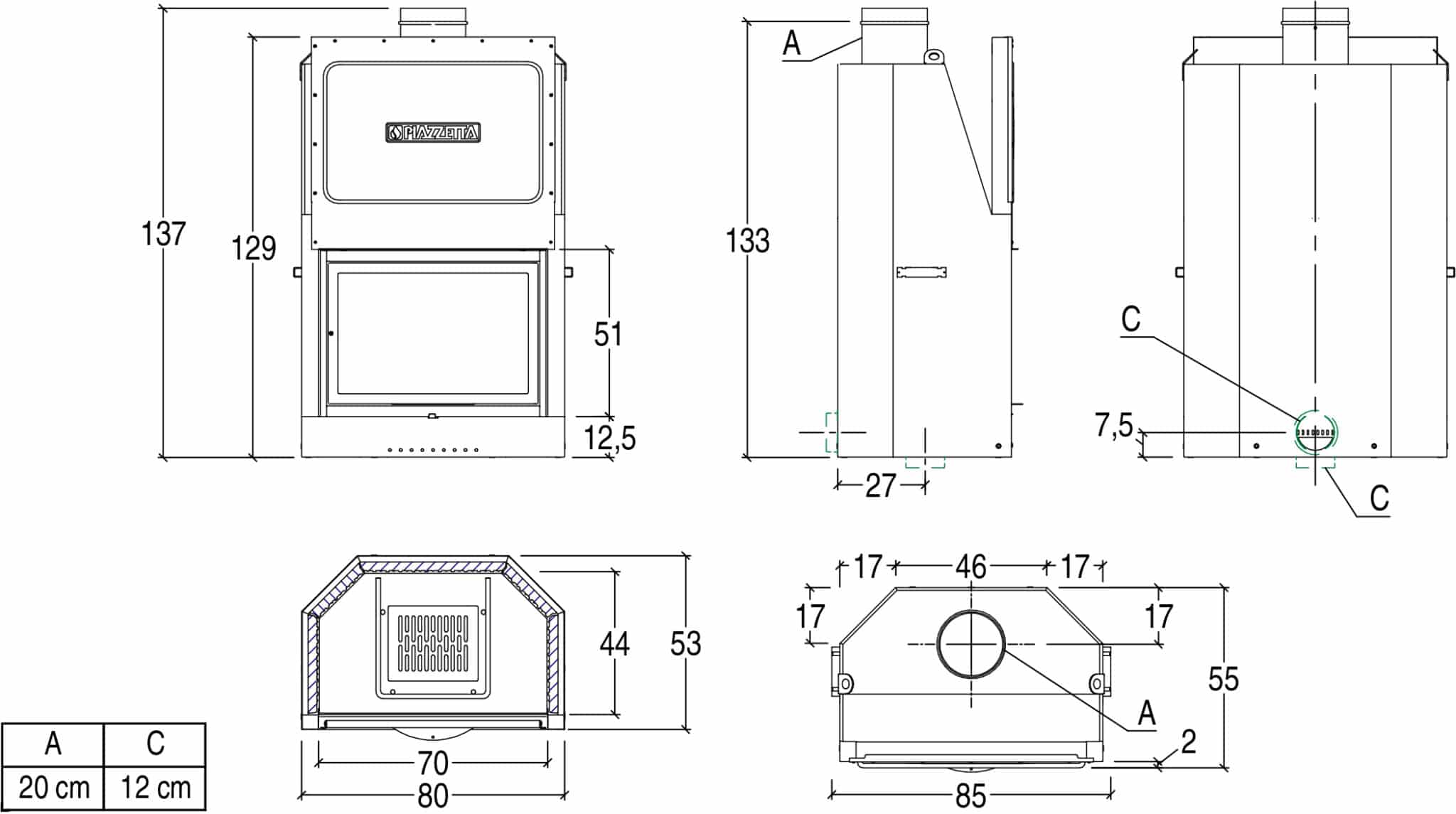

MA 260 SL Ecodesign

Energy efficiency class   A+

Rated output     13,5 kW

Efficiency            83,5 %

Heatable volume             225 – 390 m³

Wood consumption        3,9 kg/h

Ø Flue outlet      20 cm

Product weight: 157 kg

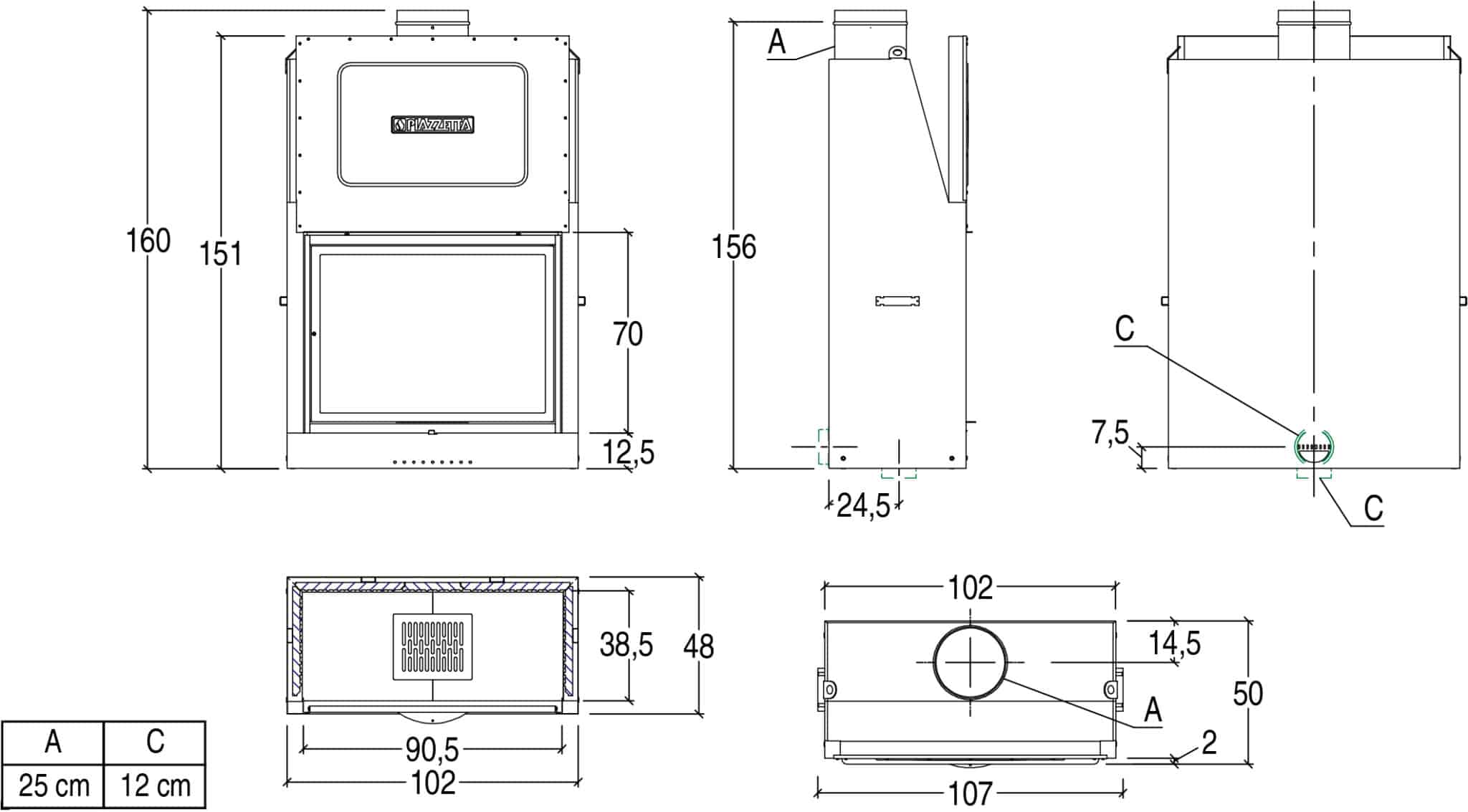

MA 262 SL Ecodesign

Energy efficiency class   A

Rated output     17,5 kW

Efficiency            80,5 %

Heatable volume             295 – 500 m³

Wood consumption        5,3 kg/h

Ø Flue outlet      25 cm

Product weight: 265 kg

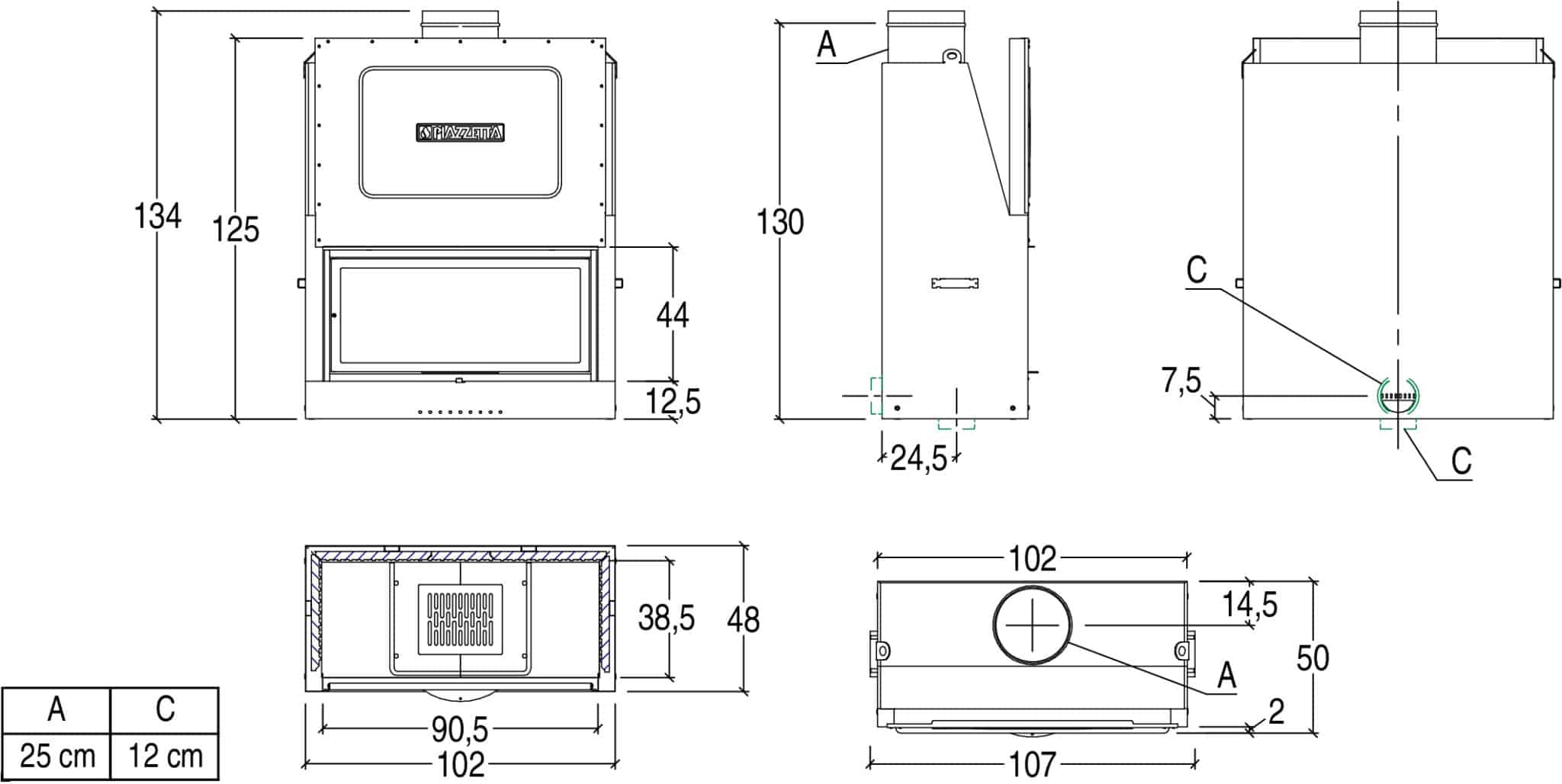

MA 263 SL Ecodesign

Energy efficiency class   A+

Rated output     13,0 kW

Efficiency            83,2 %

Heatable volume             220 – 375 m³

Wood consumption        3,8 kg/h

Ø Flue outlet      25 cm

Product weight: 205 kg

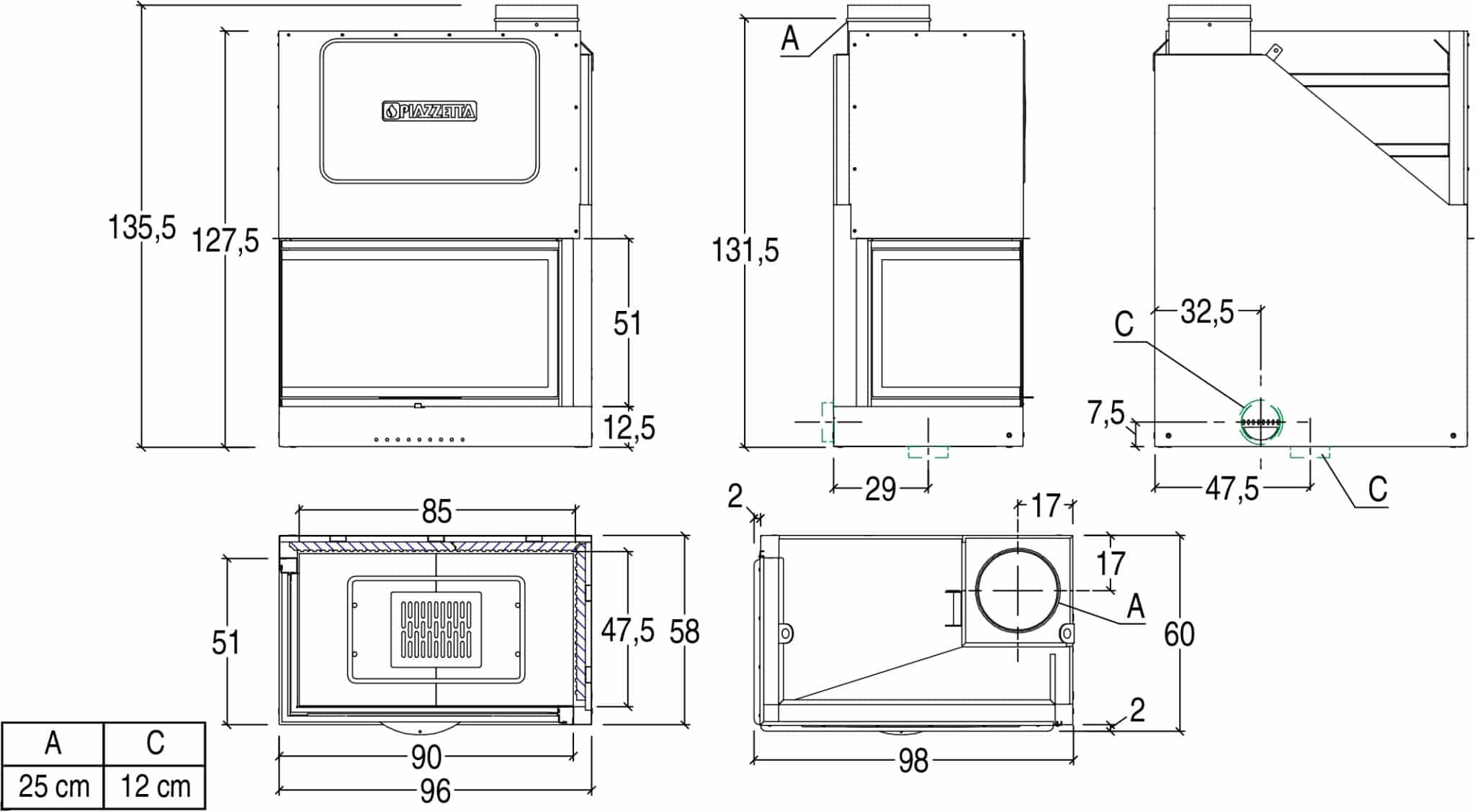

MA 283 S SL Ecodesign

Energy efficiency class   A

Rated output     13,5 kW

Efficiency            75 %

Heatable volume             225 – 390 m³

Wood consumption        4.1 kg/h

Ø Flue outlet      25 cm

Product weight:    270kg
