Fireboxes

CAST IRON GRATE
Practical and very efficient. The cast iron grate design ensures a perfectly calibrated input of primary air and therefore highly efficient combustion. The depth of the grate makes it exceptionally practical and provides more space for collecting the ash.

AUTOMATIC FLUE DAMPER
Practical and safe. The damper opens automatically to prevent smoke from coming out of the firebox when the door is opened. It may also be adjusted and can be removed for periodic cleaning of the flue pipe.

HIDDEN DOOR HANDLE
Contemporary design. Elegant and clean lines are achieved on the insert thanks to the hidden handle.

Technical data

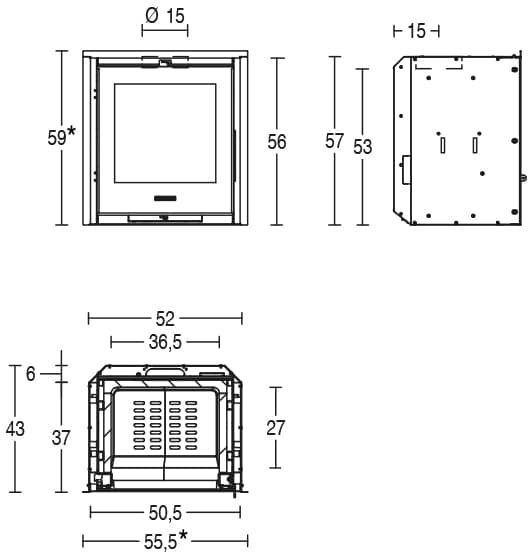

IL 52/57 M

Energy efficiency class   A

Rated output     9 kW

Efficiency            80.5 %

Heatable volume             150 – 260 m³

Wood consumption        2.7 kg/h

Ø Flue outlet      15 cm

Product weight: 96 kg

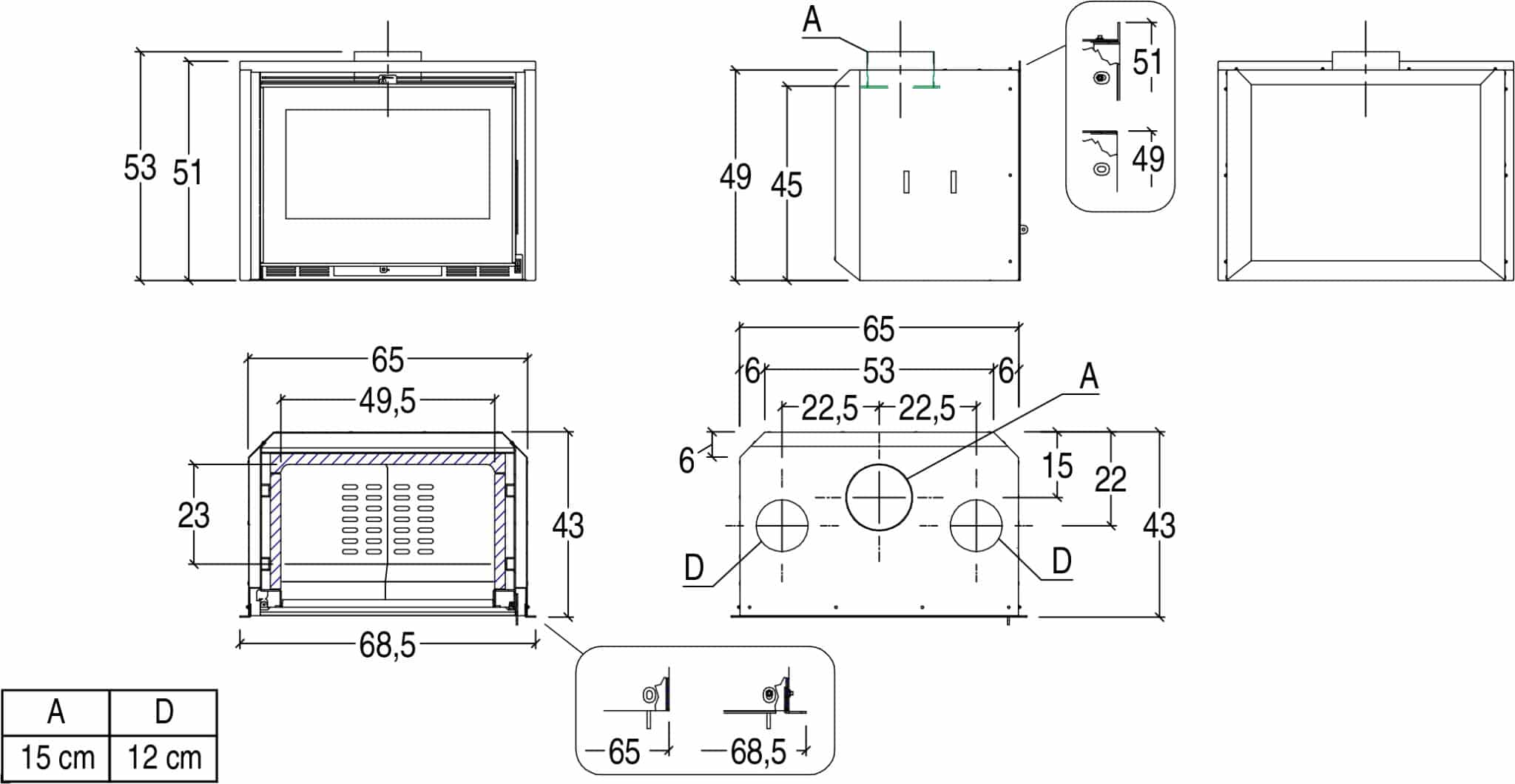

IL 65/49

Energy efficiency class   A

Rated output     7,0 kW

Efficiency            80.1 %

Heatable volume             120 – 200 m³

Wood consumption        1.9 kg/h

Ø Flue outlet      15 cm

Product weight: 105 kg

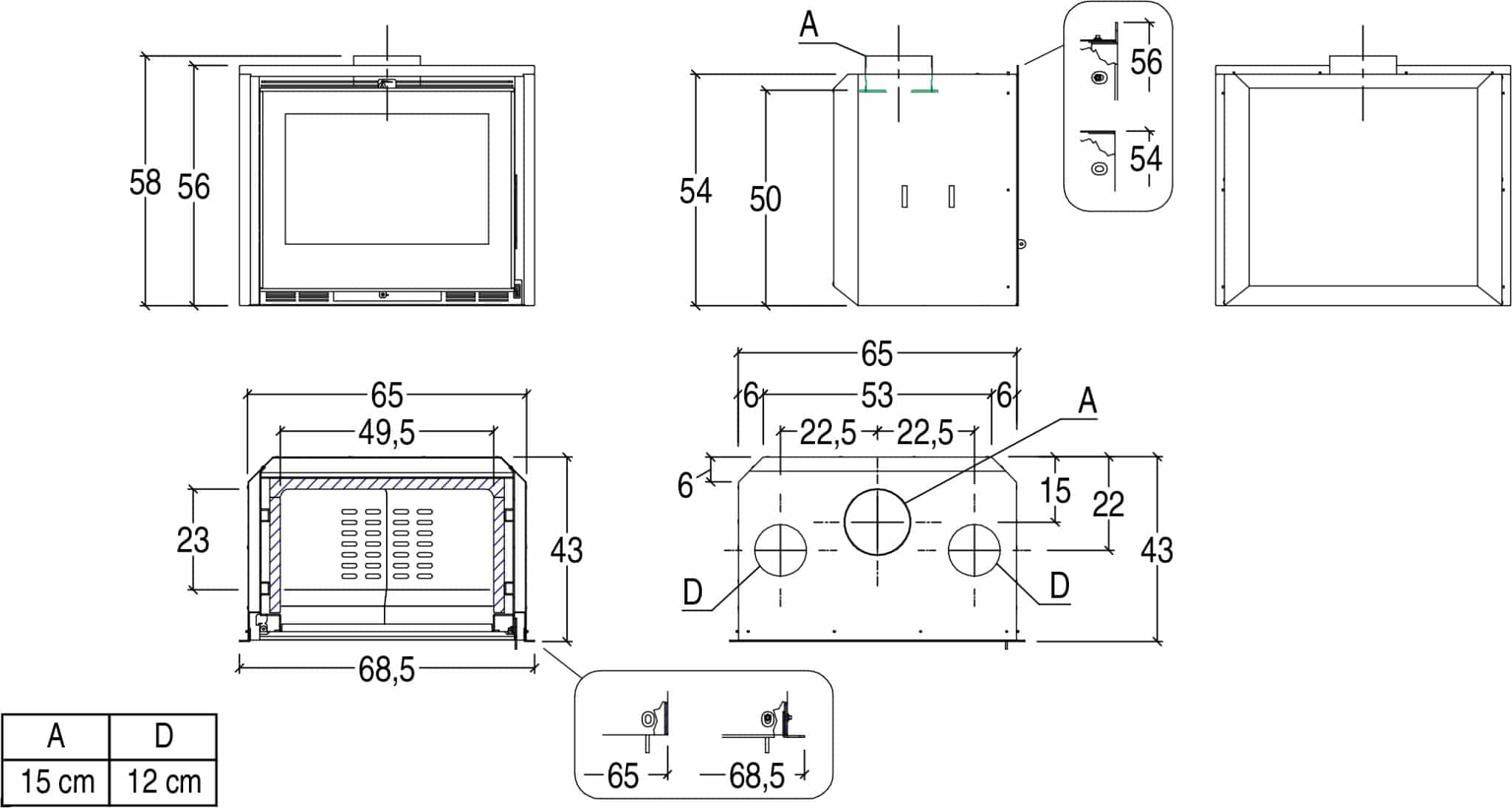

IL 65/54

Energy efficiency class   A

Rated output     7,0 kW

Efficiency            78.1 %

Heatable volume             120 – 200 m³

Wood consumption        2.03 kg/h

Ø Flue outlet      15 cm

Product weight: 110 kg

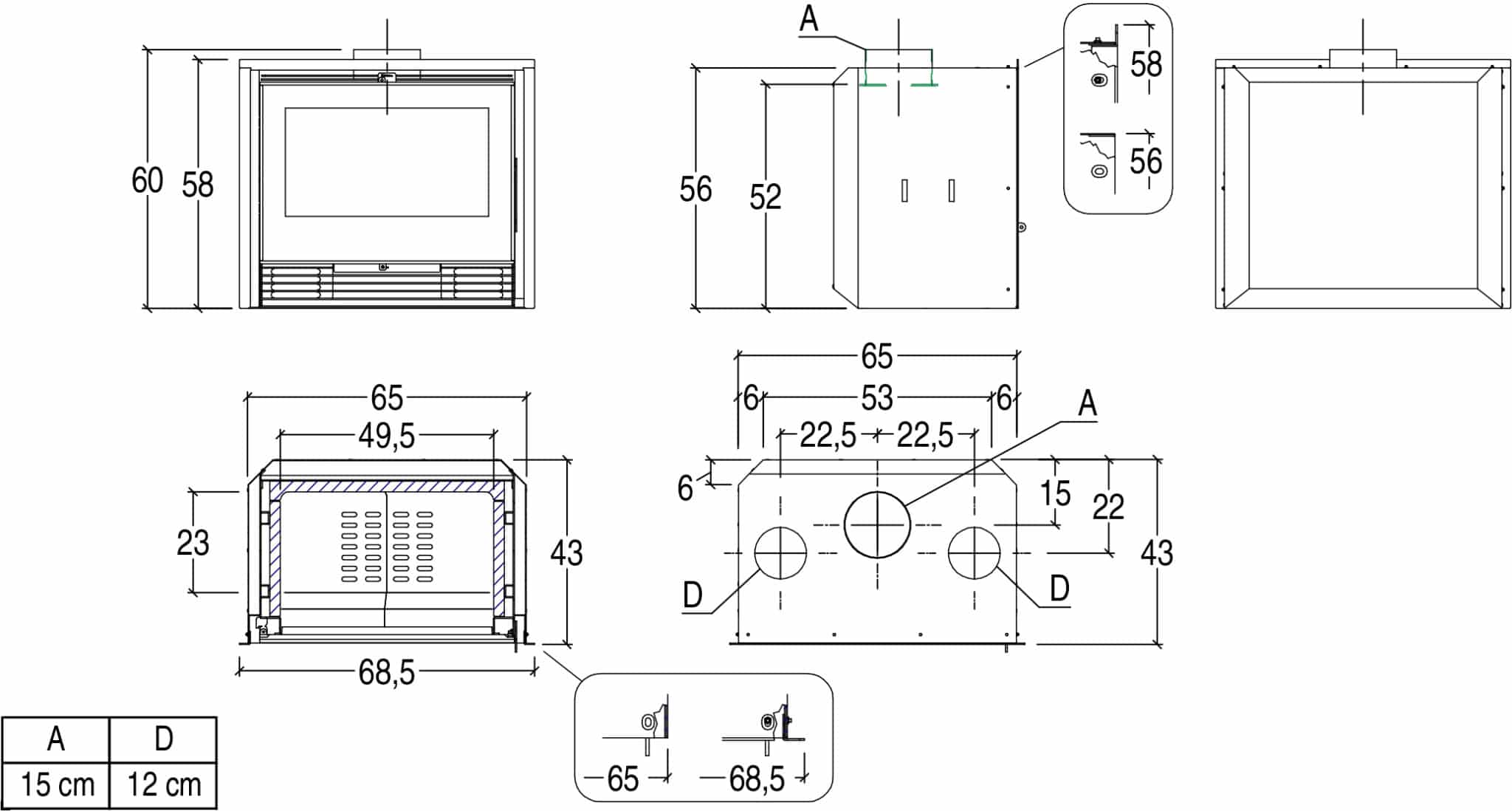

IL 65/56 V

Energy efficiency class   A

Rated output     7,0 kW

Efficiency            80 %

Heatable volume             120 – 200 m³

Wood consumption        1.9 kg/h

Ø Flue outlet      15 cm

Product weight: 120 kg

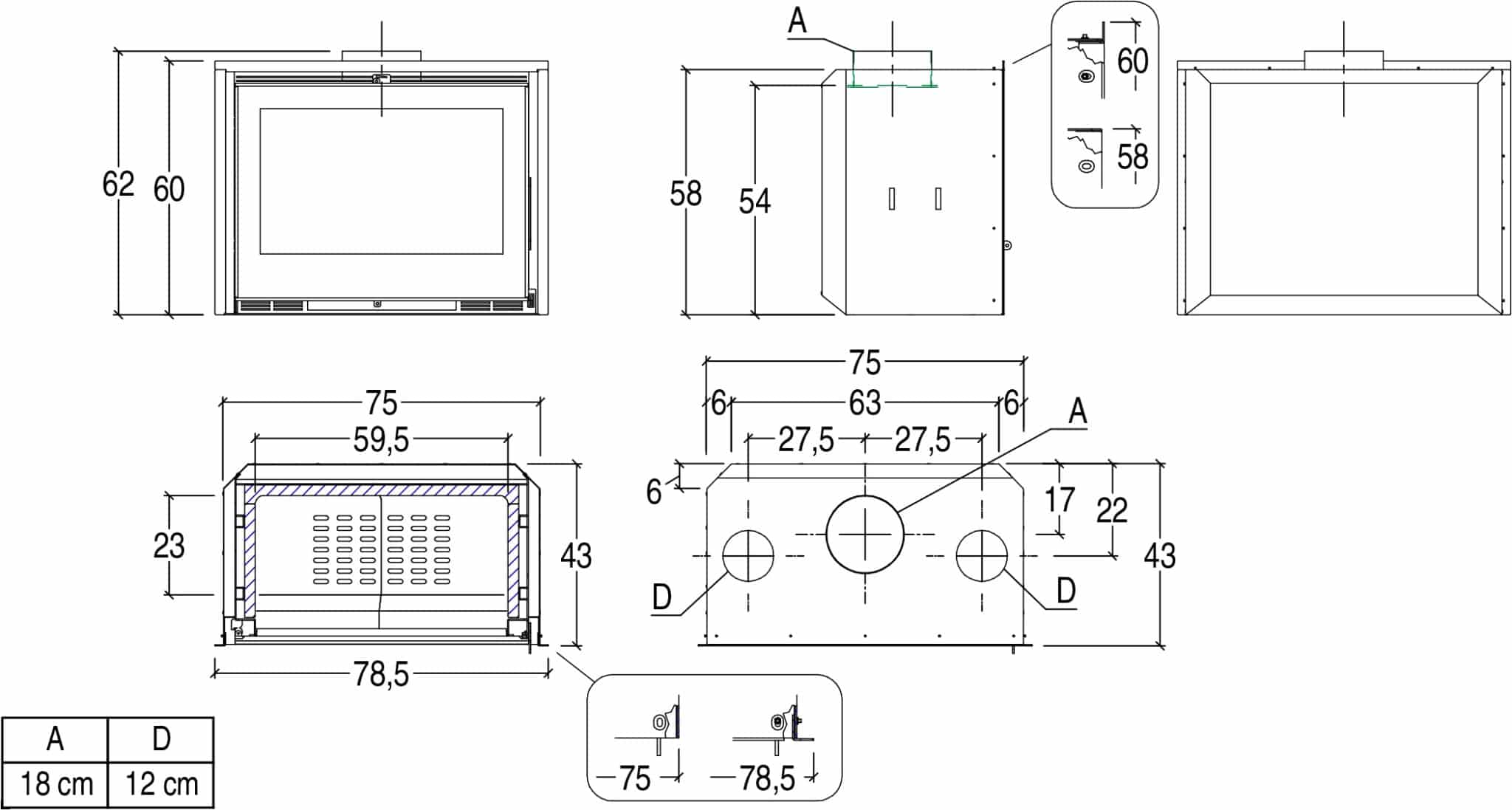

IL 75/58

Energy efficiency class   A

Rated output     9,0 kW

Efficiency            80 %

Heatable volume             150 – 260 m³

Wood consumption        2.4 kg/h

Ø Flue outlet      18 cm

Product weight: 125 kg

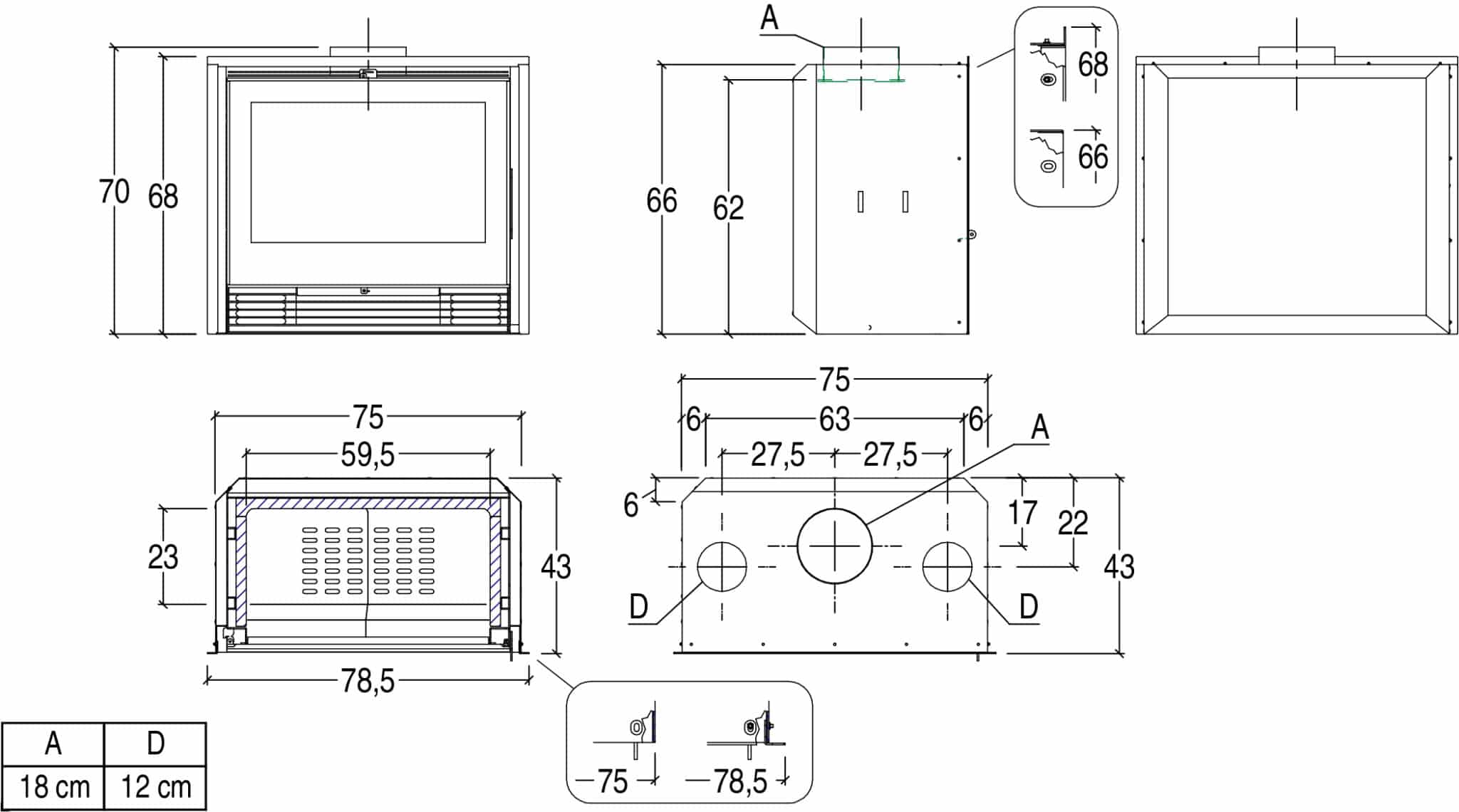

IL 75/66 V

Energy efficiency class   A

Rated output     9,0 kW

Efficiency            80 %

Heatable volume             150 – 260 m³

Wood consumption        2,4 kg/h

Ø Flue outlet      18 cm

Product weight: 147 kg
