Fireboxes

GENERAL FEATURES

• Heating: natural convection, radiation or optional ductable forced ventilation with the Multifuoco System® or Multifuoco System Plus,
• Structure: coated steel with closed firebox
• Firebox: Aluker®
• Hearth: Aluker®
• Opening: door in coated steel with self-cleaning ceramic glass resistant to 750°C. With vertically-sliding opening and door for cleaning
• Door profile: coated steel
• Handle: removable
• Primary air: manually adjustable
• Secondary air: manually adjustable
• Tertiary air: pre-determined and pre-heated
• Standard flue outlet position: top
• Fuel: wood

Technical data

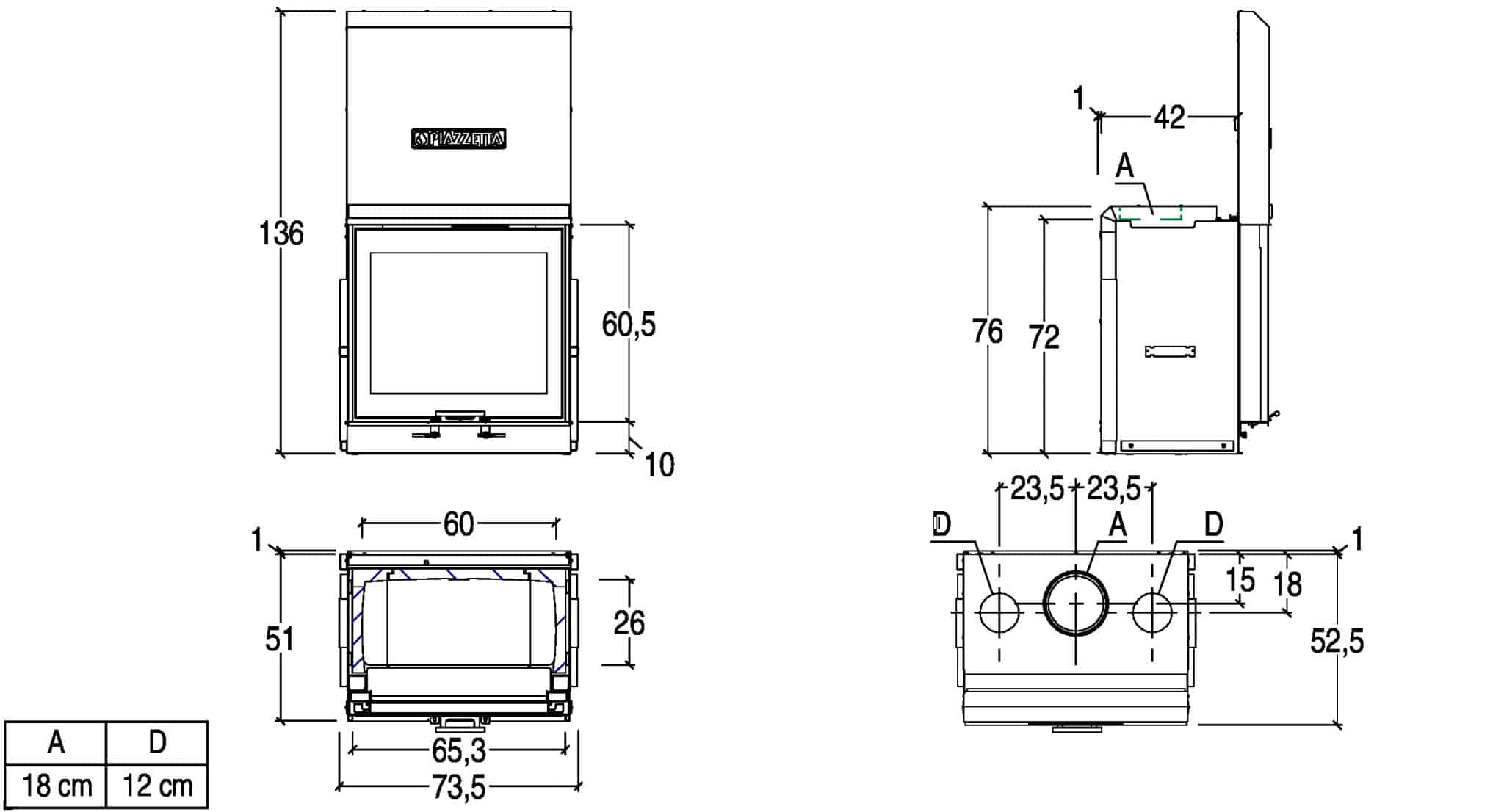

MC 65/60 SL

• Energy efficiency class A
• Rated output max kW 11,0
• Rated efficiency power % 80
• Rated consumption max kg/h 3.1
• Vertically sliding opening cm 49
• Firebox opening (W) – Dimensions for the passage of wood cm 54,5
• Firebox opening (H) – Dimensions for the passage of wood cm 41
• Mouth of firebox (W) – Minimum dimensions of mouth of cladding cm 65,5
• Mouth of firebox (H) – Minimum dimensions of mouth of cladding cm 60,5
• Weight kg 202

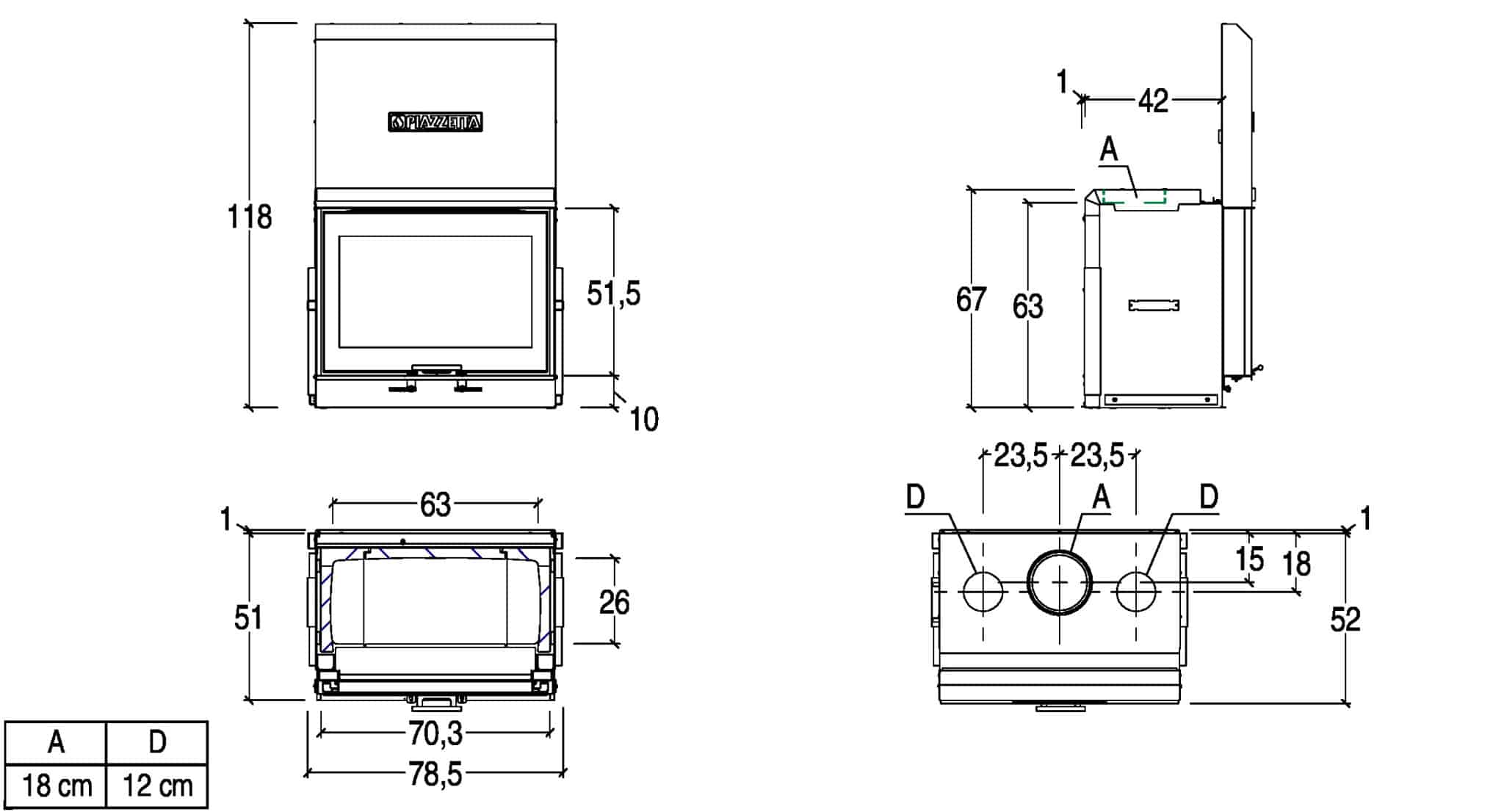

MC 70/51 SL

• Energy efficiency class A
• Rated output max kW 11,0
• Rated efficiency power % 79
• Rated consumption max kg/h 2,9
• Vertically sliding opening cm 41
• Firebox opening (W) – Dimensions for the passage of wood
cm 59,5
• Firebox opening (H) – Dimensions for the passage of wood
cm 31,5
• Mouth of firebox (W) – Minimum dimensions of mouth of cladding cm 70,5
• Mouth of firebox (H) – Minimum dimensions of mouth of cladding cm 51,5
• Weight kg 195

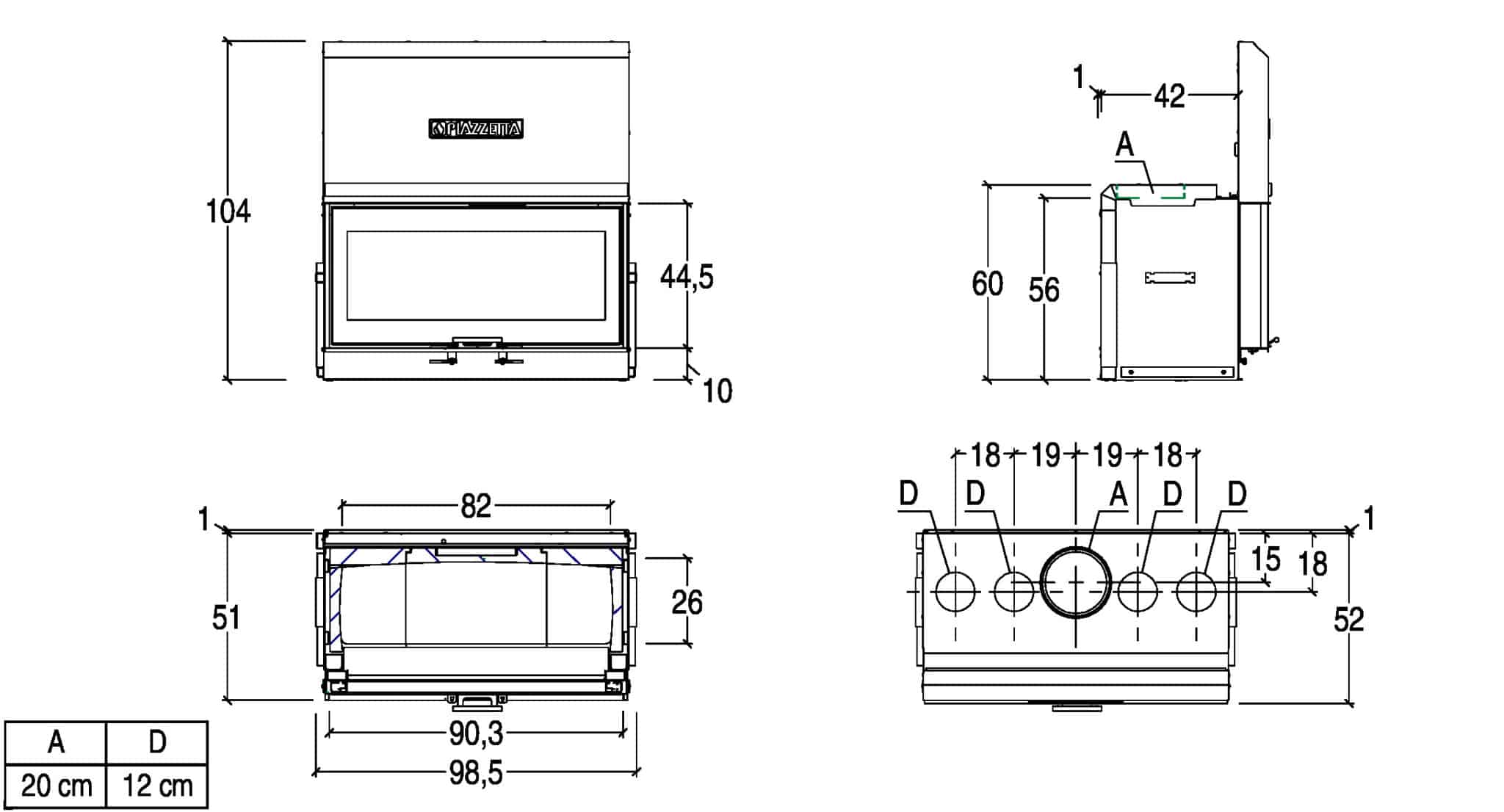

MC 90/44 SL

• Energy efficiency class A
• Rated output max kW 12,2
• Rated efficiency power % 79.3
• Rated consumption max kg/h 3,2
• Vertically sliding opening cm 33
• Firebox opening (W) – Dimensions for the passage of wood
cm 79,5
• Firebox opening (H) – Dimensions for the passage of wood cm 25
• Mouth of firebox (W) – Minimum dimensions of mouth of cladding cm 90,5
• Mouth of firebox (H) – Minimum dimensions of mouth of cladding cm 44,5
• Weight kg 205

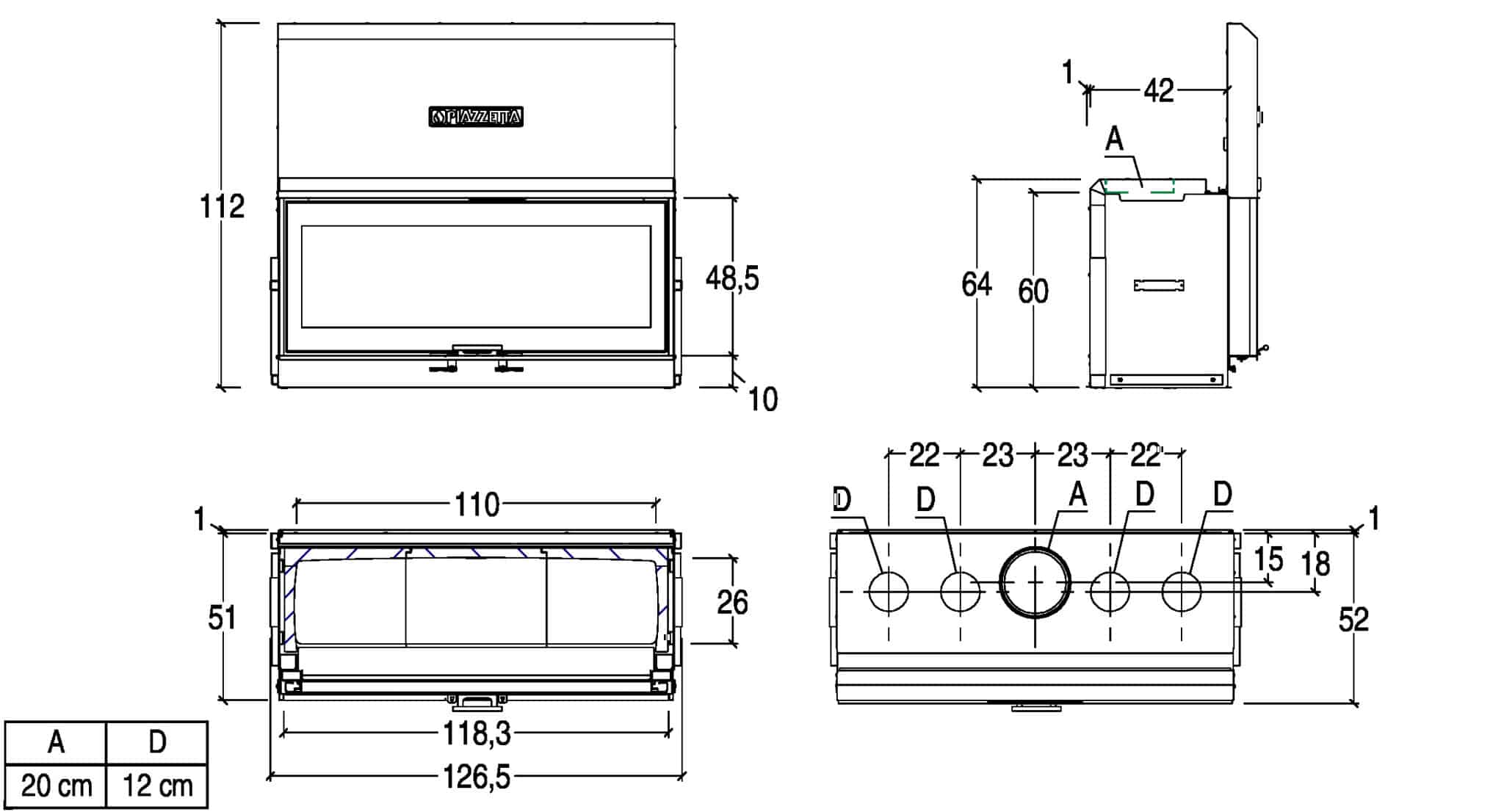

MC 120/48 SL

• Energy efficiency class A
• Rated output max kW 14,1
• Rated efficiency power % 78,9
• Rated consumption max kg/h 3,8
• Vertically sliding opening cm 37
• Firebox opening (W) – Dimensions for the passage of wood
cm 110
• Firebox opening (H) – Dimensions for the passage of wood cm 29
• Mouth of firebox (W) – Minimum dimensions of mouth of cladding cm 118,5
• Mouth of firebox (H) – Minimum dimensions of mouth of cladding cm 48,5
• Weight kg 280
